SPECIFICATIONS

Application: Electric Bicycle/motorcycle

Battery Capacity: 38.4Ah/42Ah/50Ah for option

Battery Position: Down Tube or customize

Bike Throttle: Twist

Brand Name: NONE,qs

Controller: 150A/200A controller

Display: LCD SW900 LED (Color display optional)

Feature: high speed powerful

High-concerned chemical: None

Model Number: HALO12K

Motor Type: Brushless Non-gear Hub Motor

Motor type: Dc Brushless Non-Gear Motor

Noise (db): <60db

Origin: Mainland China

Place of Origin: Zhejiang, China

Power: 10000w/12000w/15000w/16000w

Power Supply: Lithium Battery, Lithium Battery

Product Name: 10000w/12000w/15000w ebike motorcycle kits

Rated Speed: 60-140km/h

Rated Voltage: 72V 84v 96v

Wheel Size: 18", 17", 19", 21"

Dear customer, welcome to my store. The current price does not match the actual price (configuration and logistics). To obtain detailed product information and accurate prices, please add WA for confirmation. Manager:don. WhatsApp:+86 18373198203 E-mail:songping759@gmail.com

Products Description

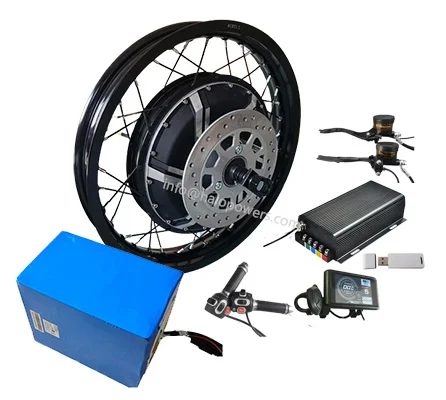

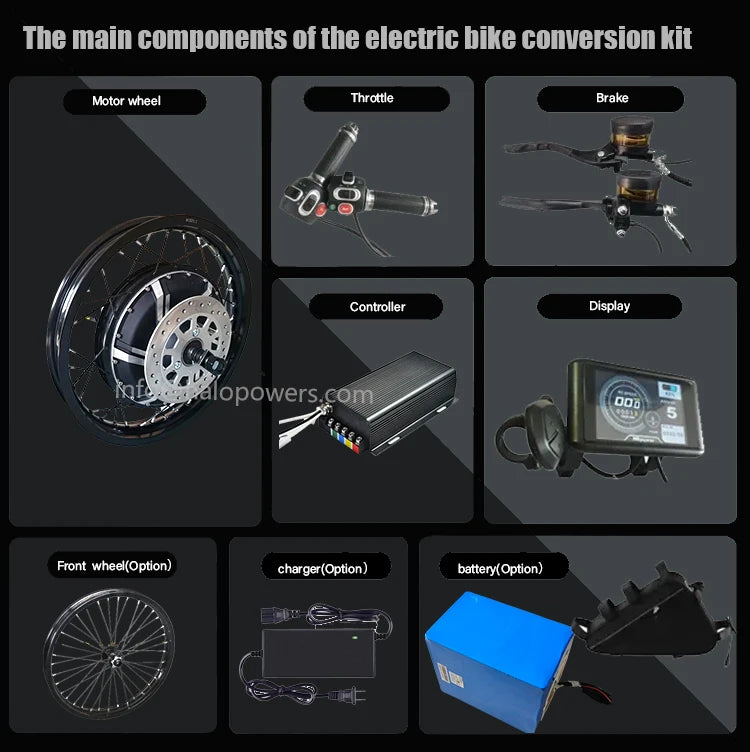

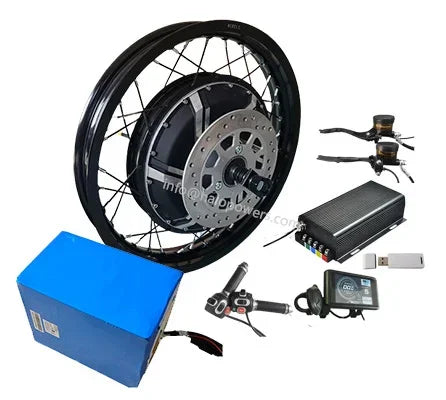

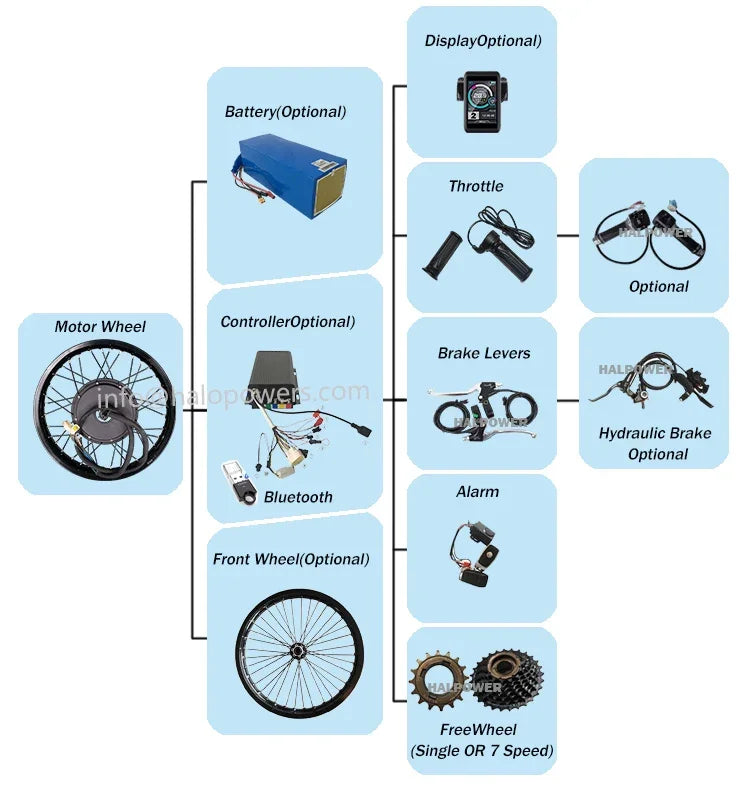

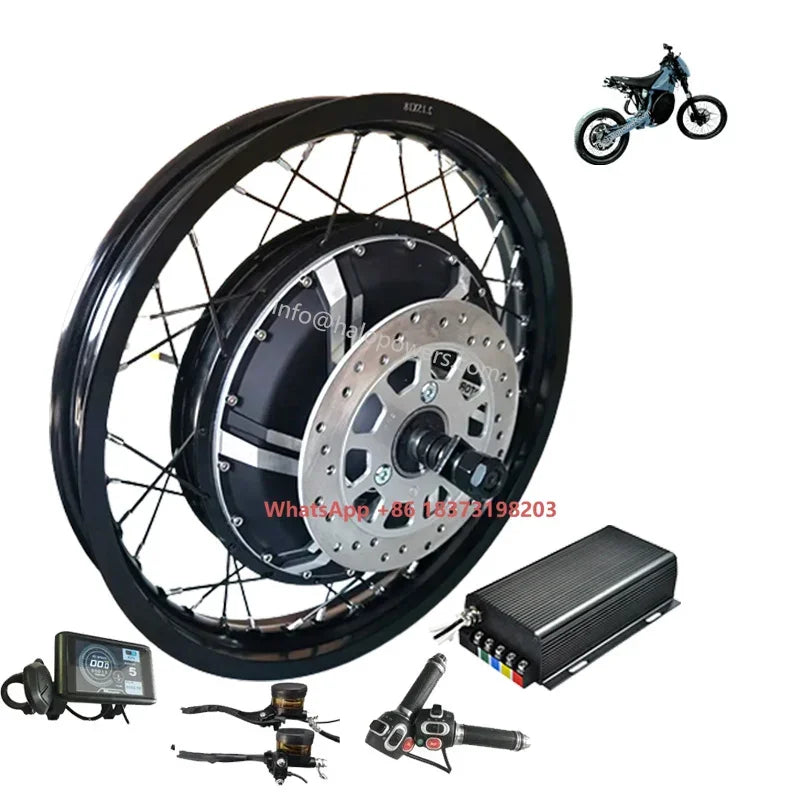

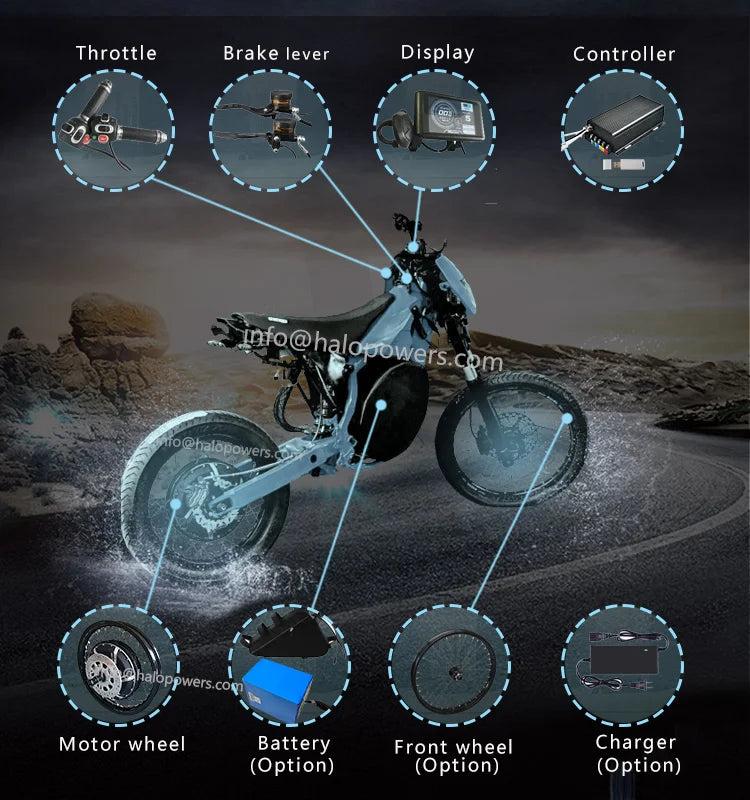

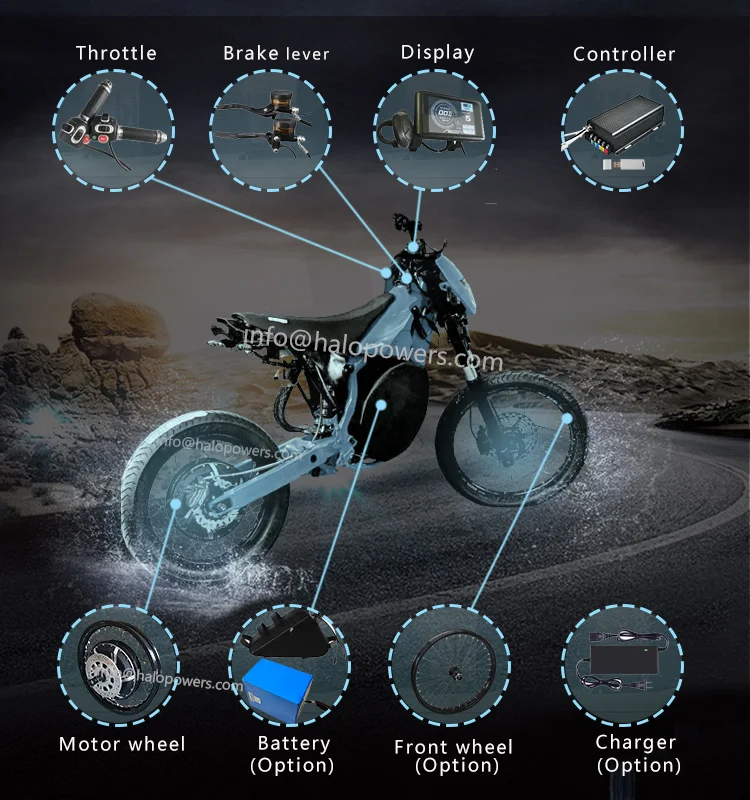

What the electric bike kit include?

1 * 72V 96V 12000W Powerful Brushless Gearless Hub Motor with Rim ( 17" /18"/19''/ 21" motorcycle rim)

1 * 150A/200A high-end sine wave program controller

1 * Twist Throttle

2 * Aluminum Alloy Brake Levers

1 *UKC1 Colorful Display

Option:

1 * Colorful LCD display(Option)

1 *Lithium Battery (Option)

1 * charger(Option)

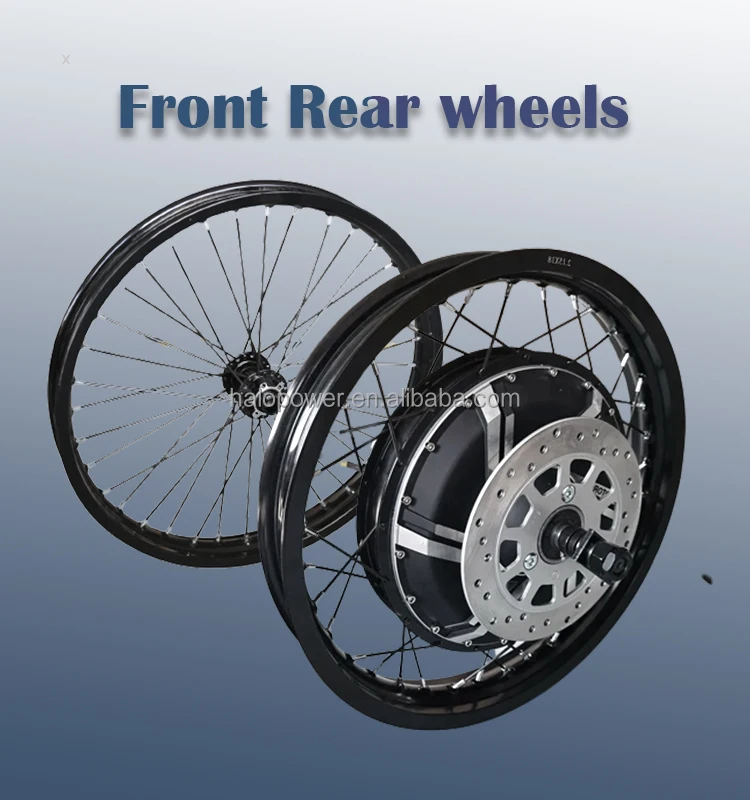

1 * Front Wheel(Option)

1 *F/R Tyre(Option)

Specification

Specifications
1	Motor Type	BLDC Hub Motor with Permanent Magnets
2	Motor design	Spoke Motor with Double axle out
3	Spoke Hole	36pcs*4.2mm
4	Matching Wheel	17inch-21inch spoke wheel
5	Magnet Height	50MM
6	Pole Pairs	16 pairs(32PCS Curved Mangets)
7	Rated Power	8000W-12000w
8	Max Power	11280W(Peak 14000W)
9	Rated Voltage	72V( 72-144V Can be optional)
10	Speed	120km/h (30-115km/h can be customized)
11	Max Torque	200N. M
12	Max No-load RPM	1400RPM
13	Rear Fork width for installation	200mm
14	Max Efficiency	90%
15	Continious current	130A
16	Max current	190A ,Peak 260A
17	Brake type	Disc brake
18	Winding Core material	Aluminium
19	Cross Section of Phase wire	16 mm2
20	Hall sensor phasing angle	120 degree
21	Temperature Sensor	Optional
22	Max. Working Temperature	70 degree, Peak 120 degree
23	Waterproof Grade	IP54
24	N.W./G..W.	22kgs / 23kgs
25	Package Size	44*43*34CM

Details Images

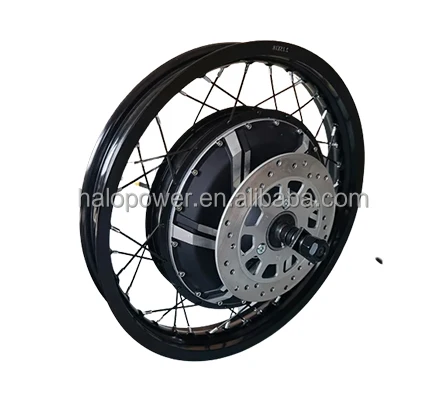

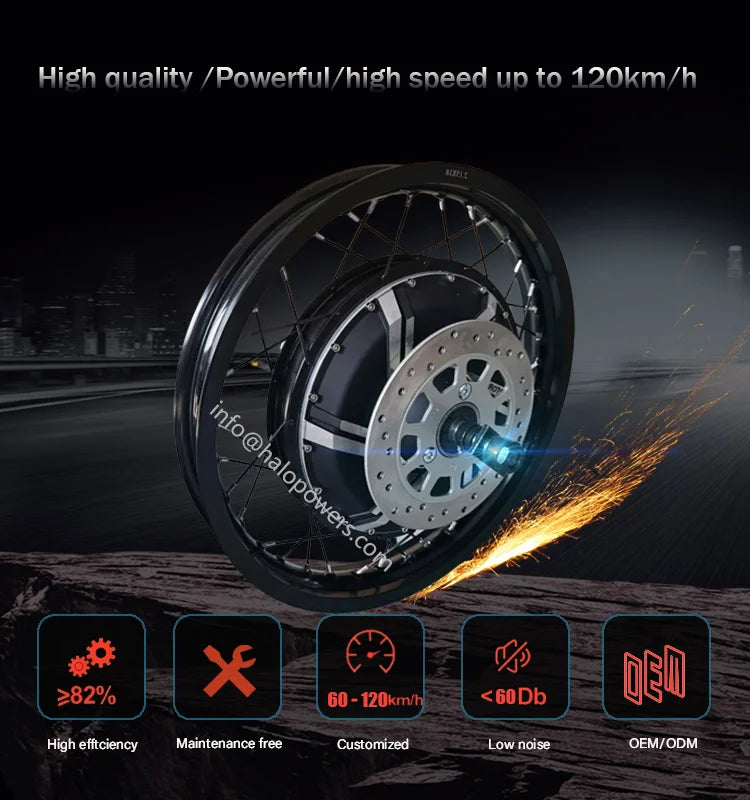

Motor

It's brushess DC Non-gear rear motor.

the rim is stronger MOTORCYCLE double-wall aluminium alloy.

The top speed can more than 120km/h.fast and powerful motor.

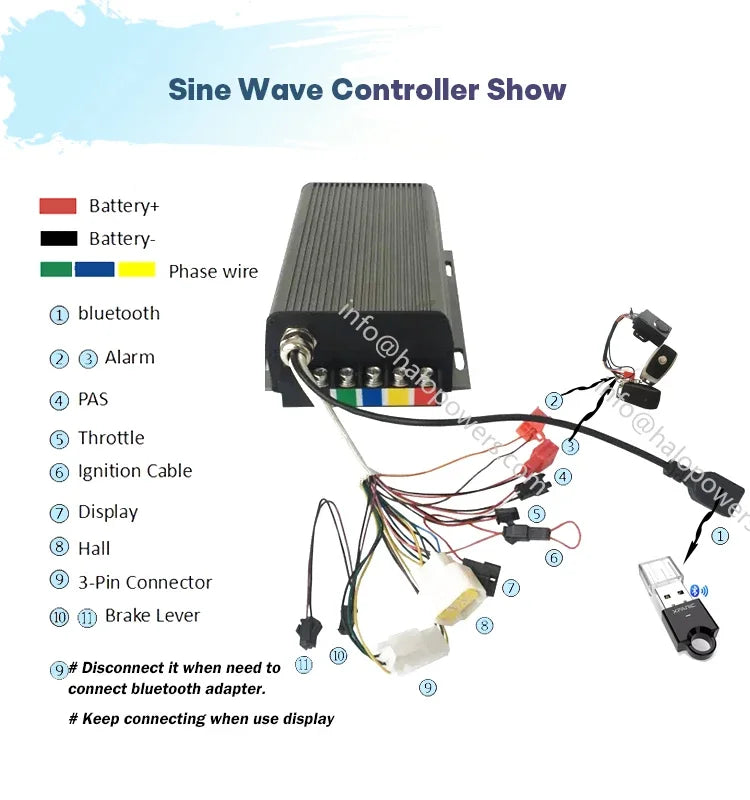

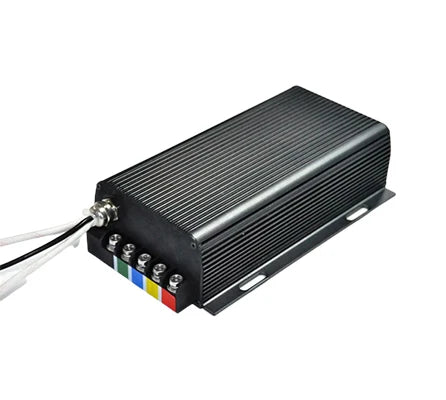

   controller

200A high-end sIne wave program controller

With multiple protection features such as over-current, over-temperature, over-voltage, under-voltage,speed, lack of phase and so on.

You can program the data according to your computer.

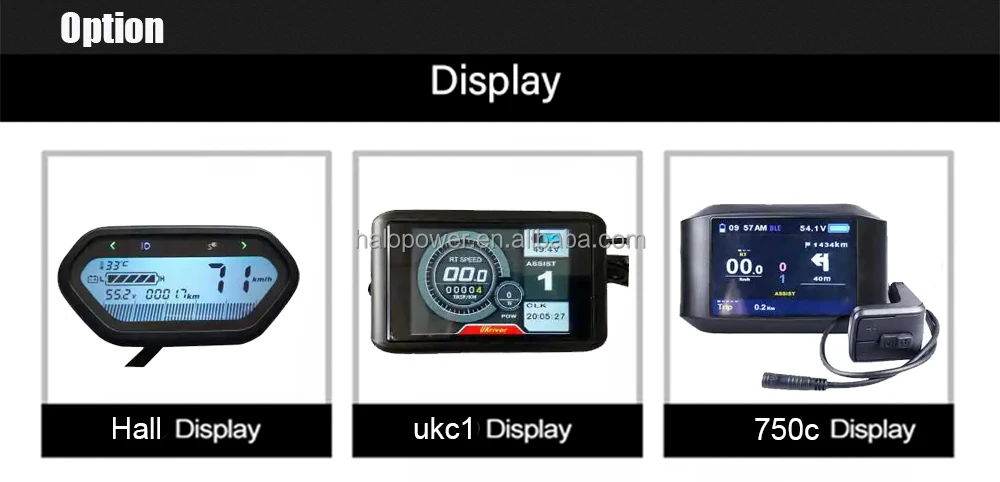

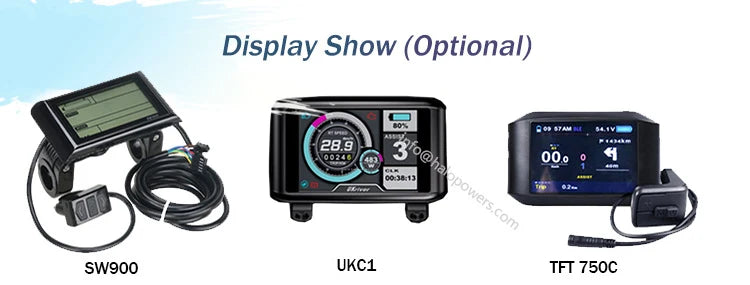

 display

Colorful LCD display

Data display function: display cycling speed, single mileage and cumulative mileage, cycling timing, booster gear, motor running
power and temperature, battery voltage and power status, brake status; etc,contact us for the more detail use manual.

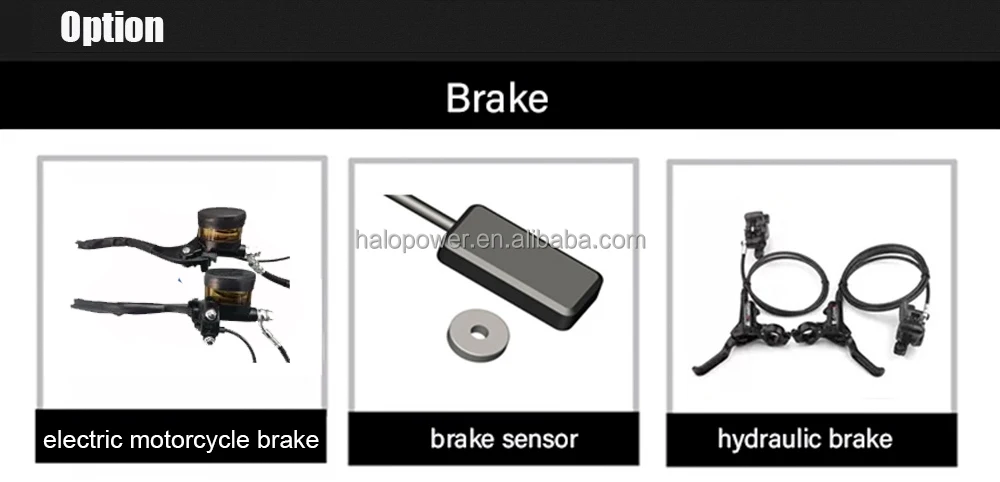

   brake lever

The default configuration aluminium alloy brake lever

stable die-casting production process,classic streamlined design style

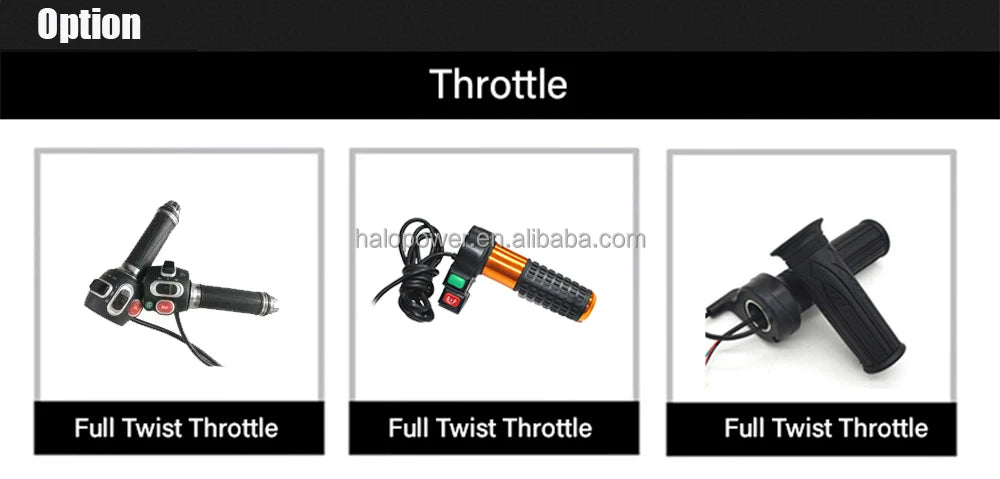

Throttle

half twist throttle

full twist throttle with speed set

full twist throttle

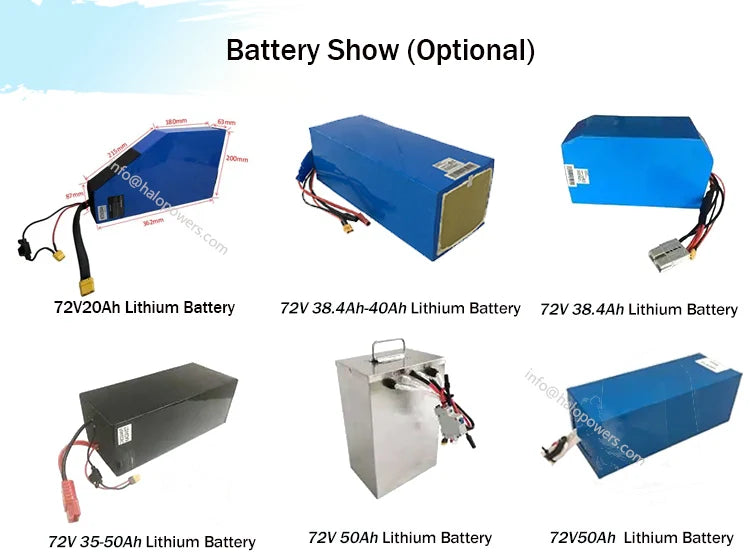

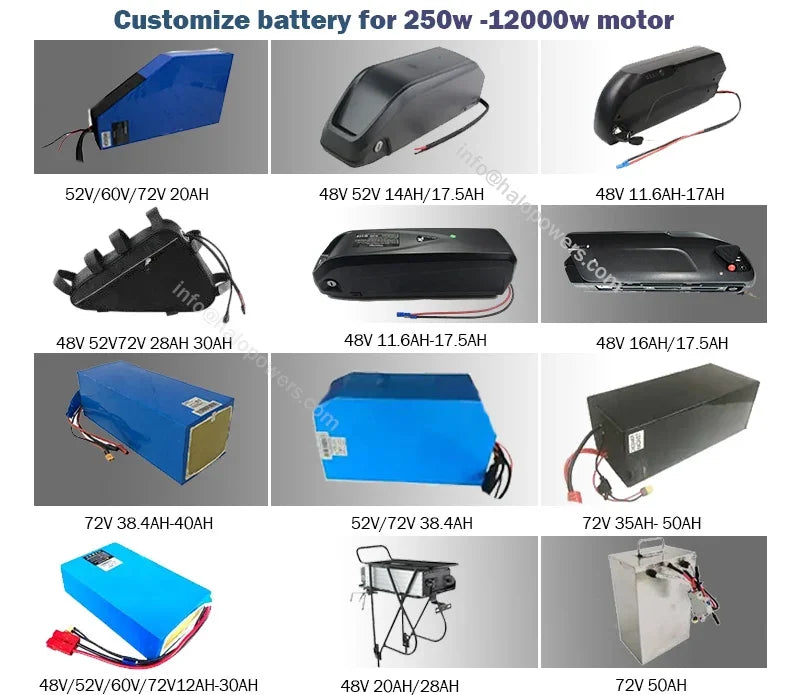

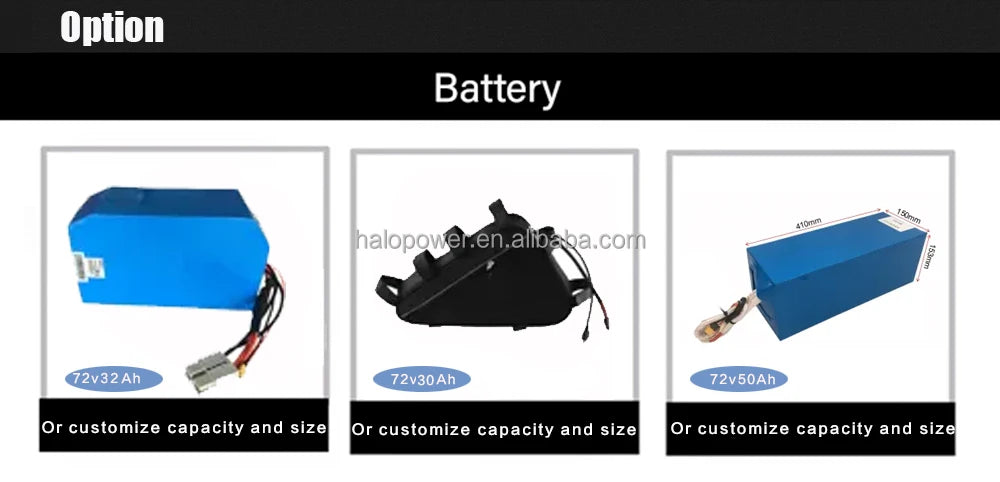

 Battery and bracket,charger (option)

72V26.1Ah lithium battery/ or customize

72V38.4Ah lithium battery/ or customize

72V42Ah lithium battery/ or customize

72V50Ah lithium battery/ or customize with smart BMS.original grade A battery cell. Can put the battery on rear rack with bag,or customize the size and capacity based on your frame' needs.

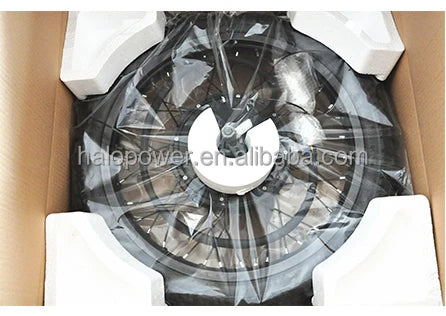

Package

Five-layer corrugated box. Good package can be delivered to customer directly

1. with white sheet sponge to fix the rim tightly. 2. Wrap the other parts with bubble pack. 3. Layer corrugated carton 17/19/21"motorcycle rim:60x60x28cm

Recommend Products

Company Profile

Packing&transportation

FAQ

Q1. Can I have a sample order for 12000w ebike conversion kit ？
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for sample order?
A: 1 piece.
Q3. What about the lead time of 12000w Electric Bike Motor Conversion Kit?
A: 5-10 days if available in stock, mass production time needs 20-30 days for different order quantity.
Q4. Do you offer guarantee for ebike conversion kit Electric Bicycle Conversion Kit?
A: Yes, we offer 2-year warranty (new product to replace if quality itself at first year,and offer technical support and free
parts second year,you just pay the freight cost.Moreover,the continuous after-sale service is available.
Q5. What is the payment term?
A: PayPal,T/T, West Union,L/C.We do our best to make you at easy way.
