SPECIFICATIONS

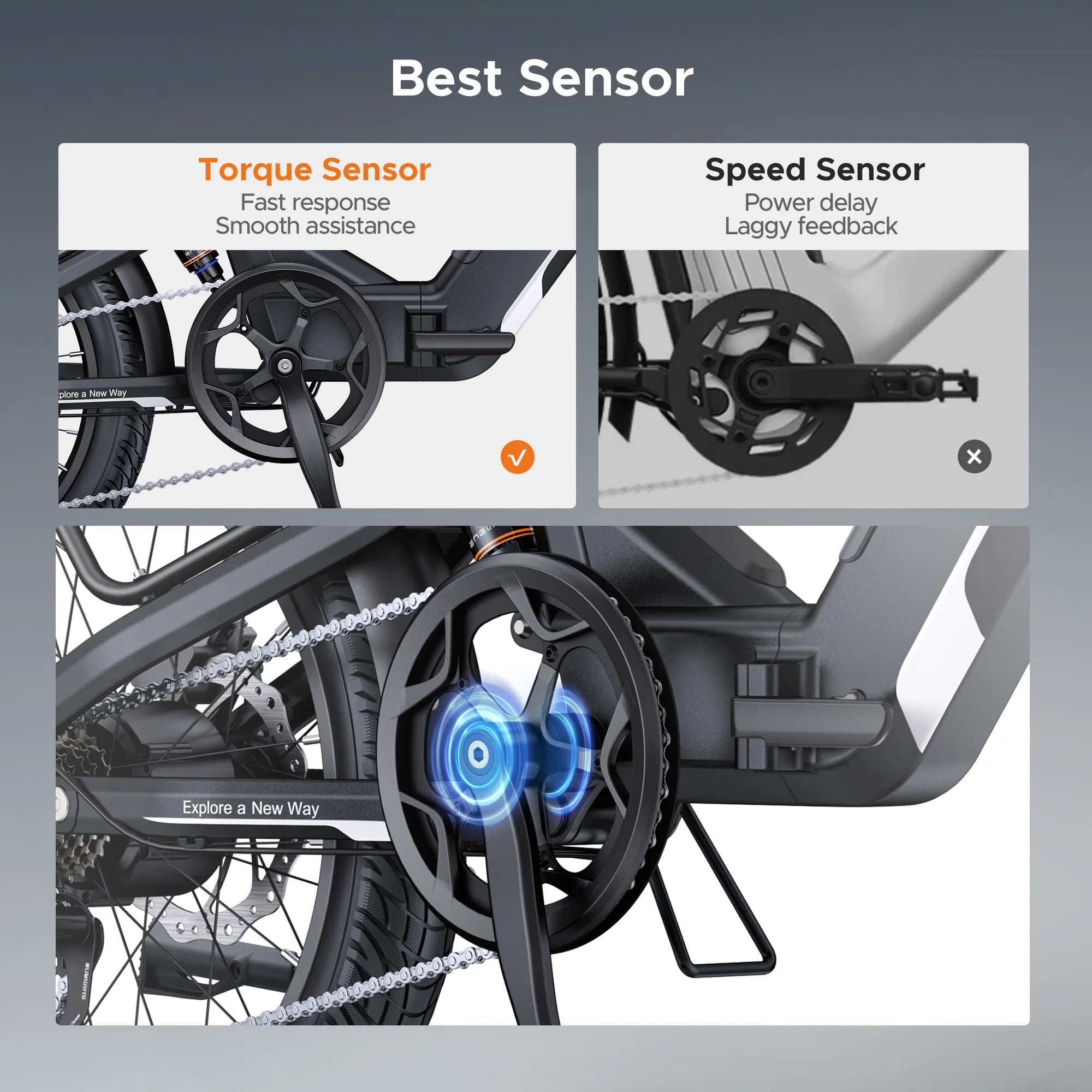

Assist System: Torque Sensor(The instrument can be set with torque or cadence.)

Battery: 48V 15Ah (720Wh), LG 21700 Cells, with BMS

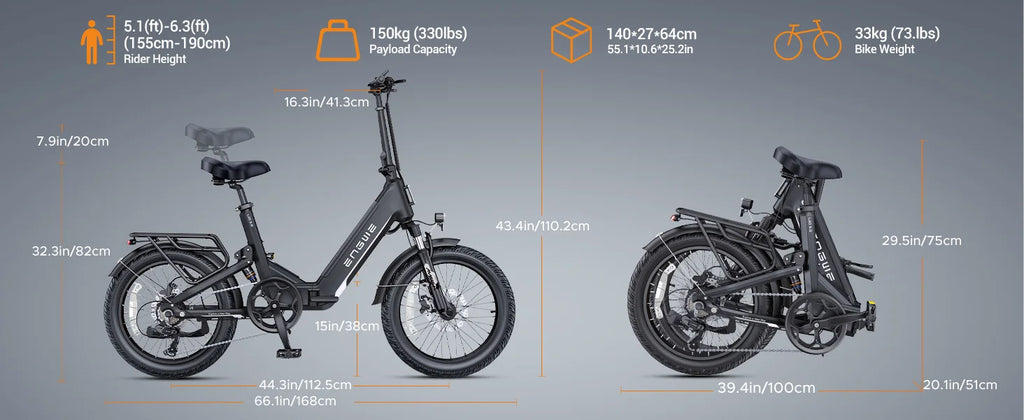

Bike Weight: 34.5 kg(76.1 lbs)

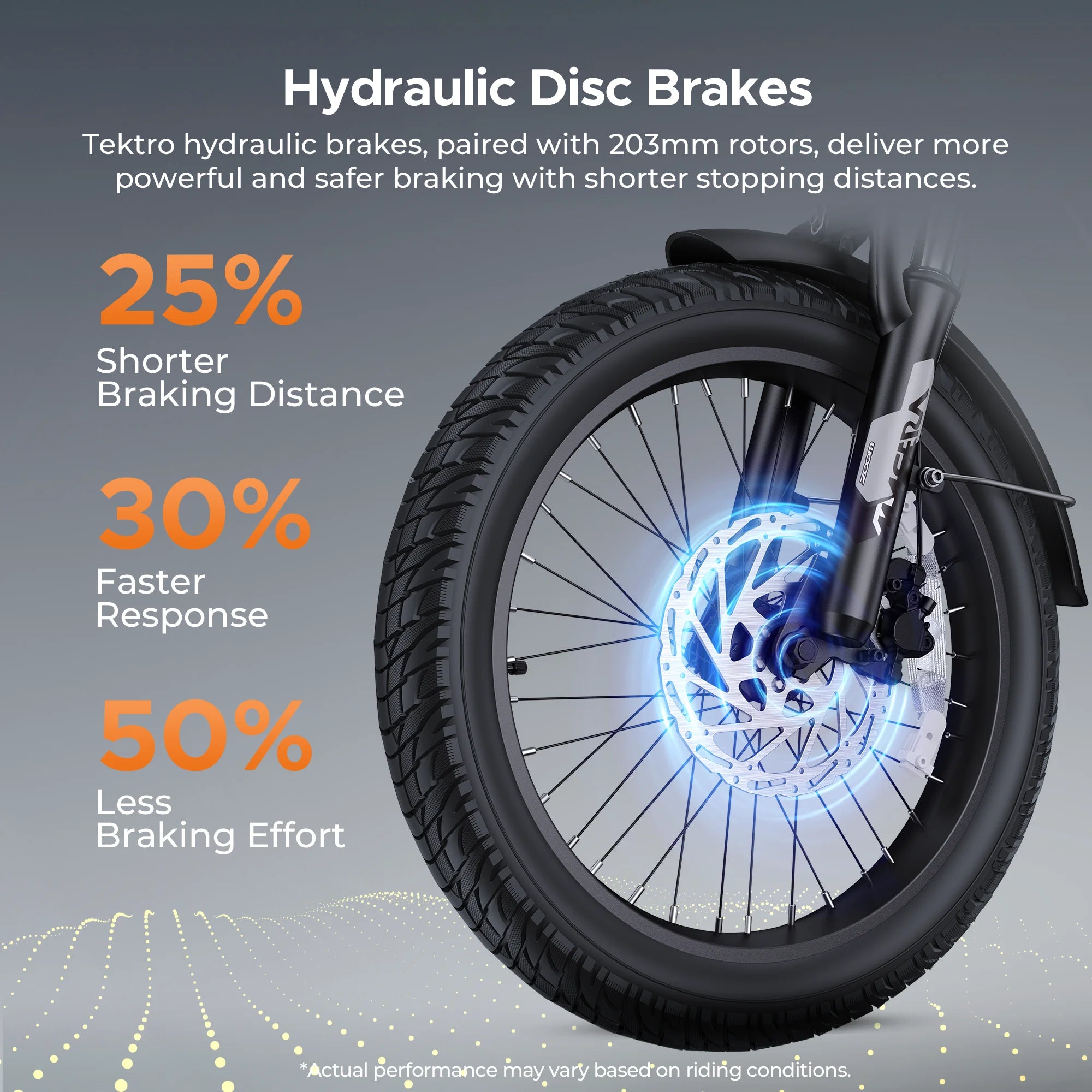

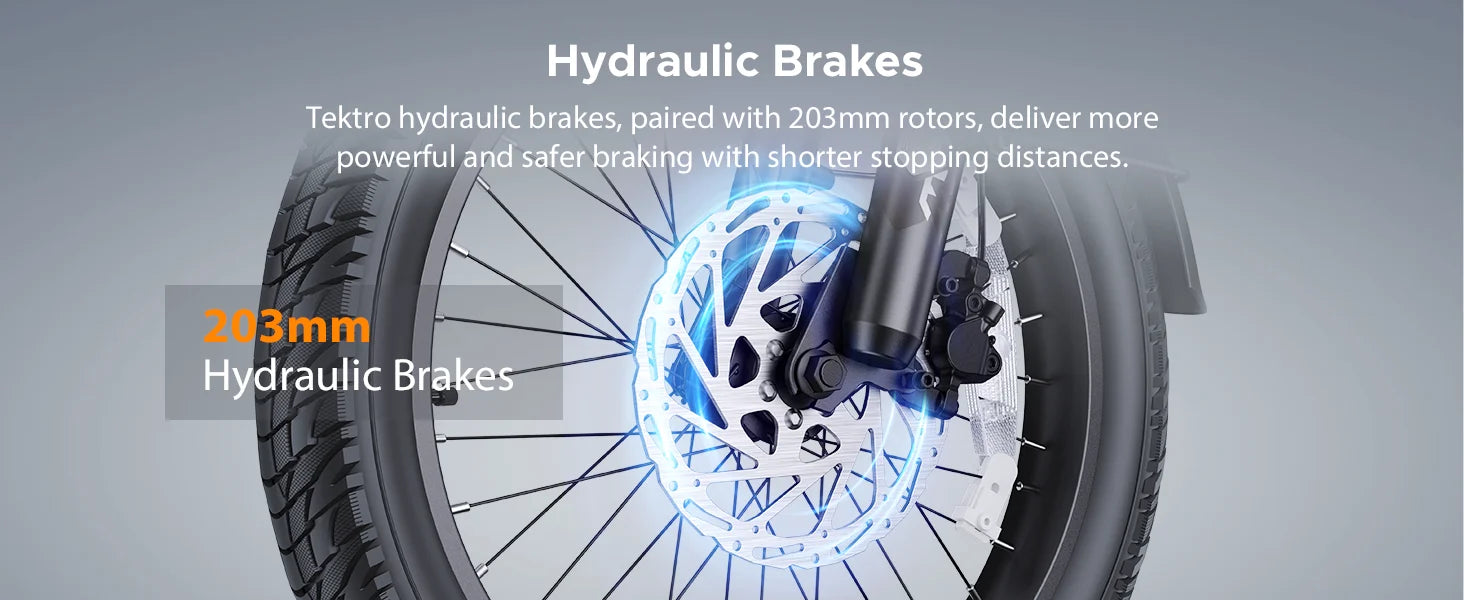

Brake Type: Tektro Hydraulic, Dual-Piston

Brand Name: ENGWE

Cassette: 8-Speed, 13T-28T

Certification: UL 2849 Certified by Tuv Rheinland

Chain: C8R8 Anti-Rust, 116 Links

Chainring: 52T

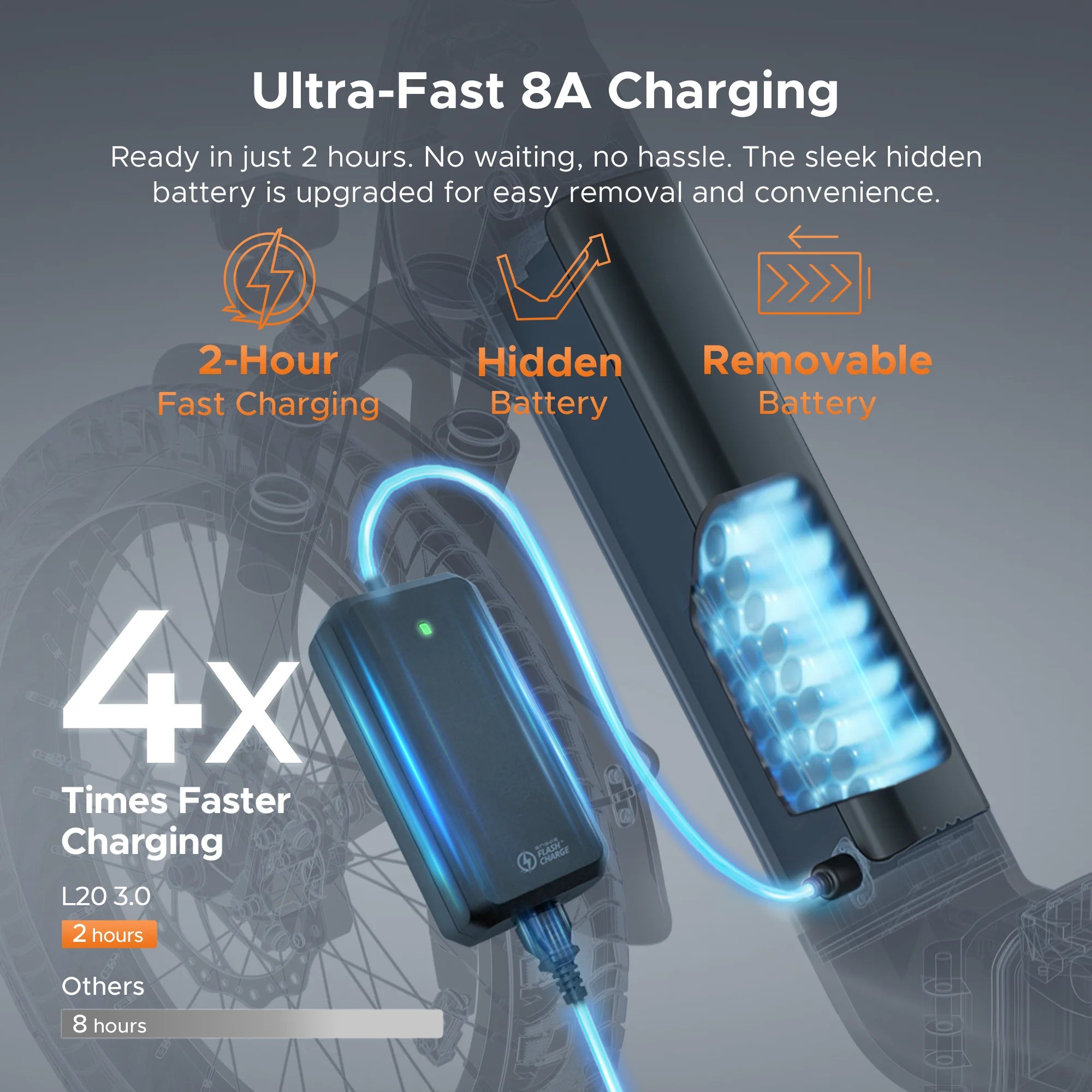

Charger: 54.6V 8A Output

Crank: 170mm

Disc Rotor: 203mm Front & Rear Drivetrain

Display: 3.5" LCD Color Display, ENGWE-Designed, Mid-Position, with Bluetooth

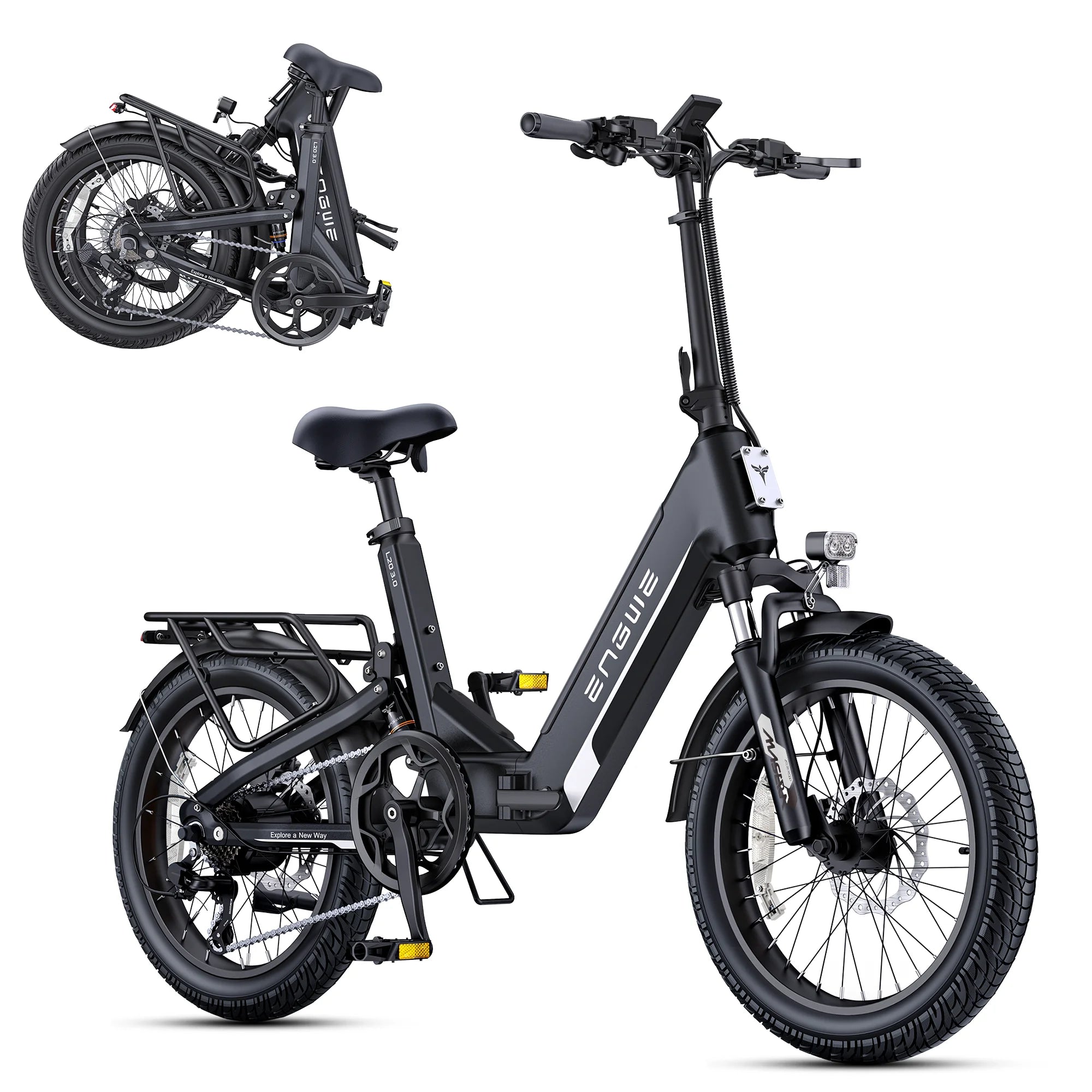

Fold: Yes

Fork: Hydraulic, Adjustable Lockout, Aluminum & Iron

Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design

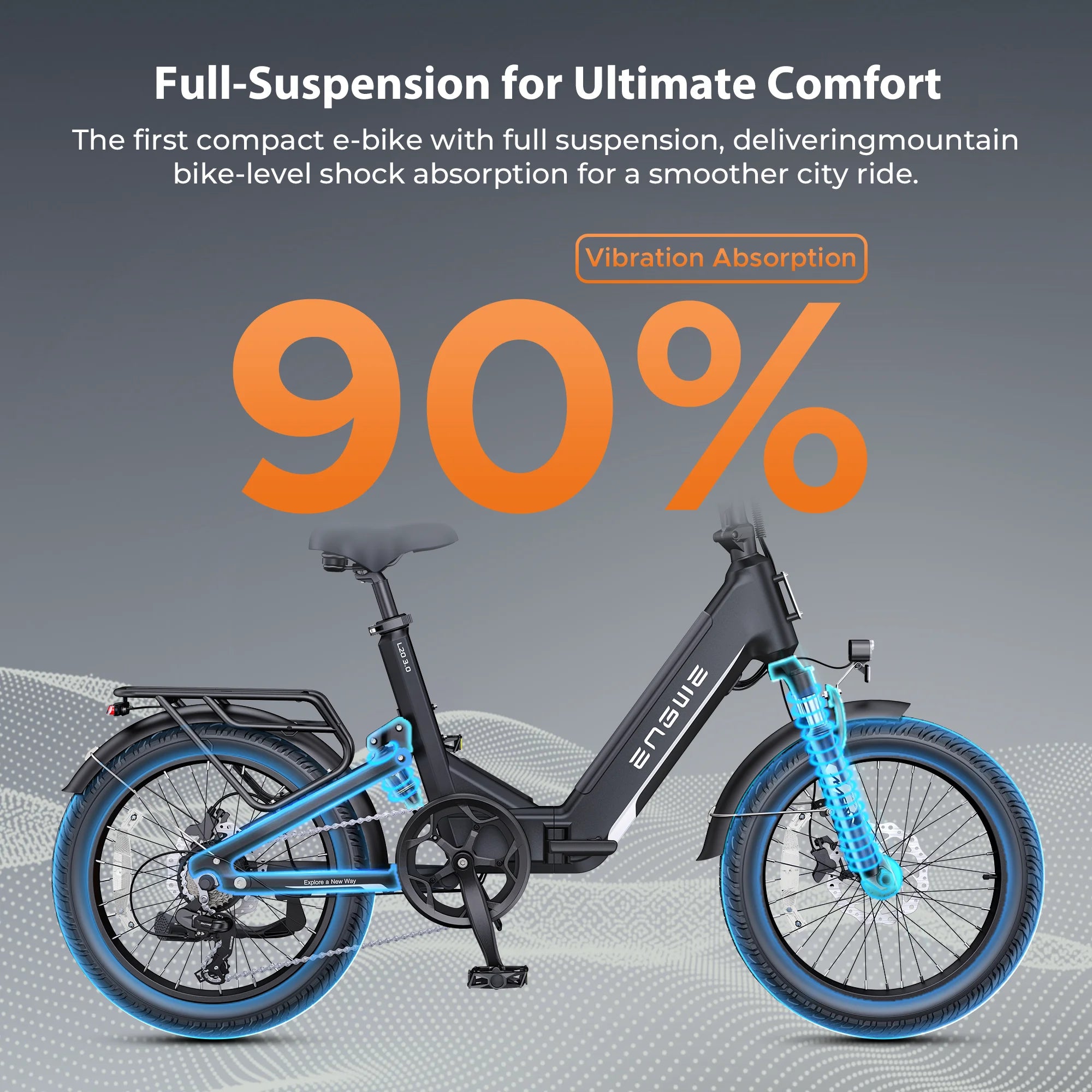

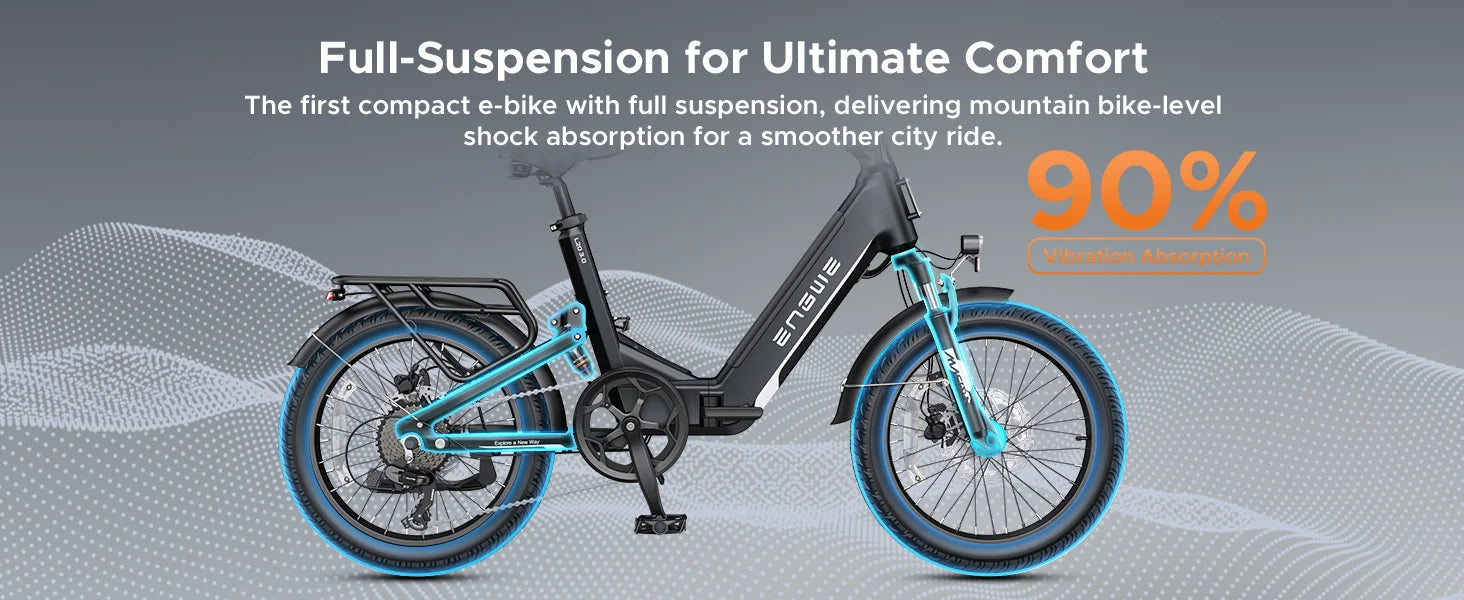

Frame Style: Compact, Full Suspension

Front Light: 30 Lux with Integrated E-Horn

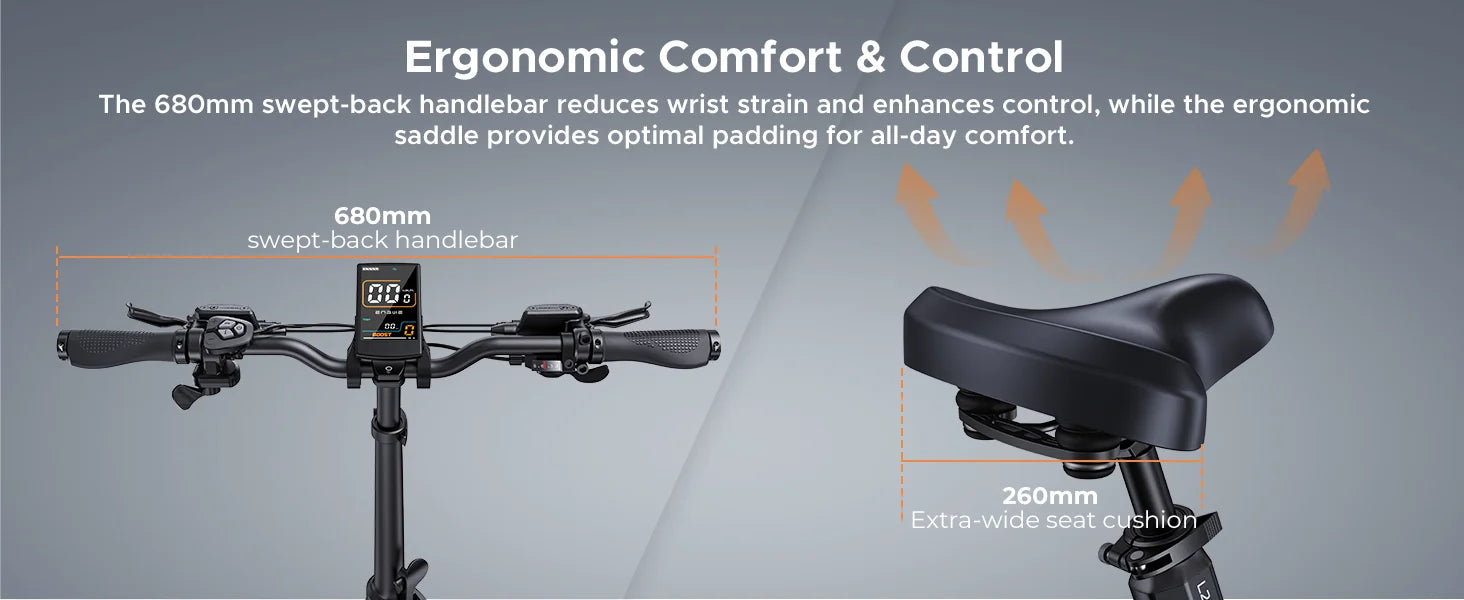

Handlebars: 680mm Width

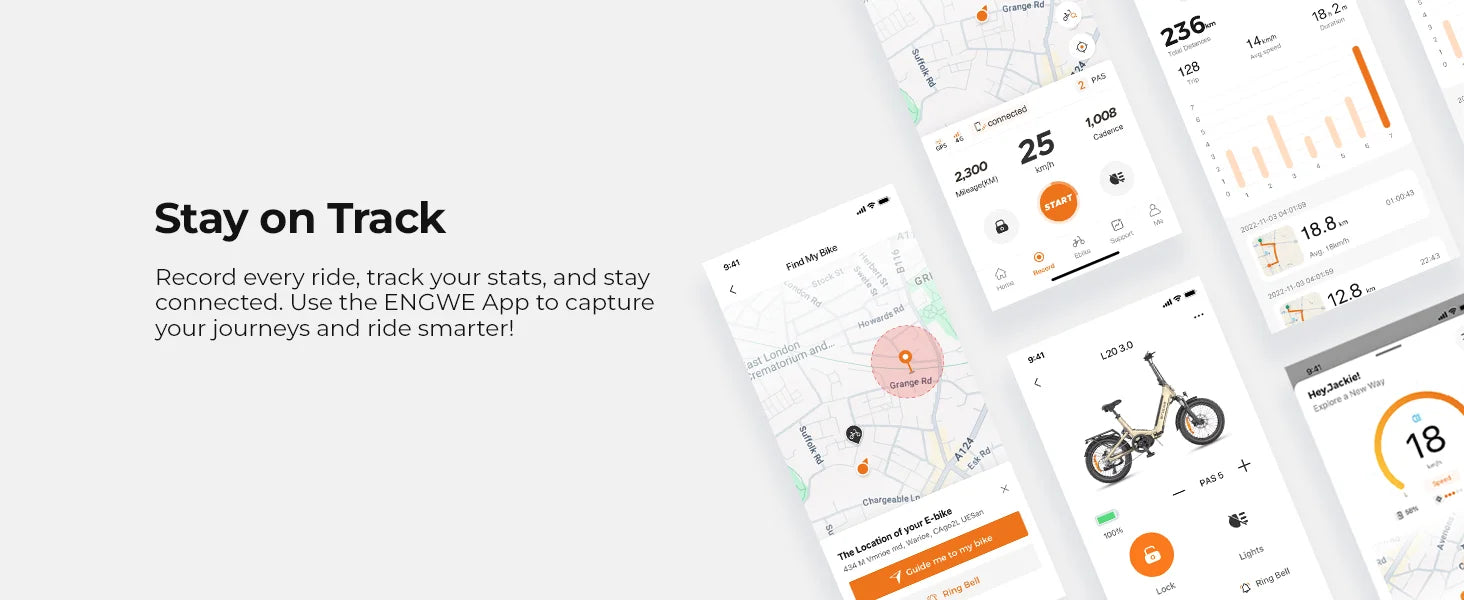

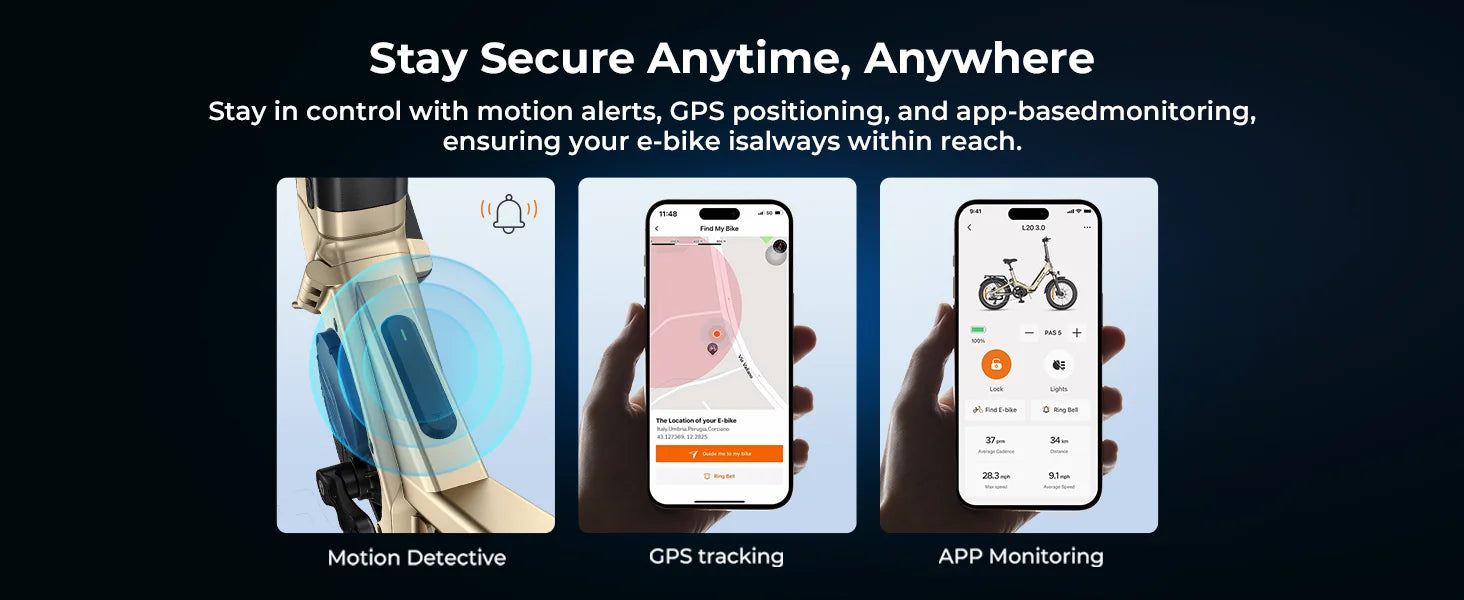

IOT: ENGWE IOT Module with GPS, 4G & Bluetooth

Max Load Capacity: 150kg (330 lbs)

Max Mileage: Max range of the 60 Miles at PAS mode 1

Max Speed: <25km/h,28MPH (The actual speed will vary due to rider weight and road conditions)

Max Torque: 90Nm

Model Number: L20 3.0

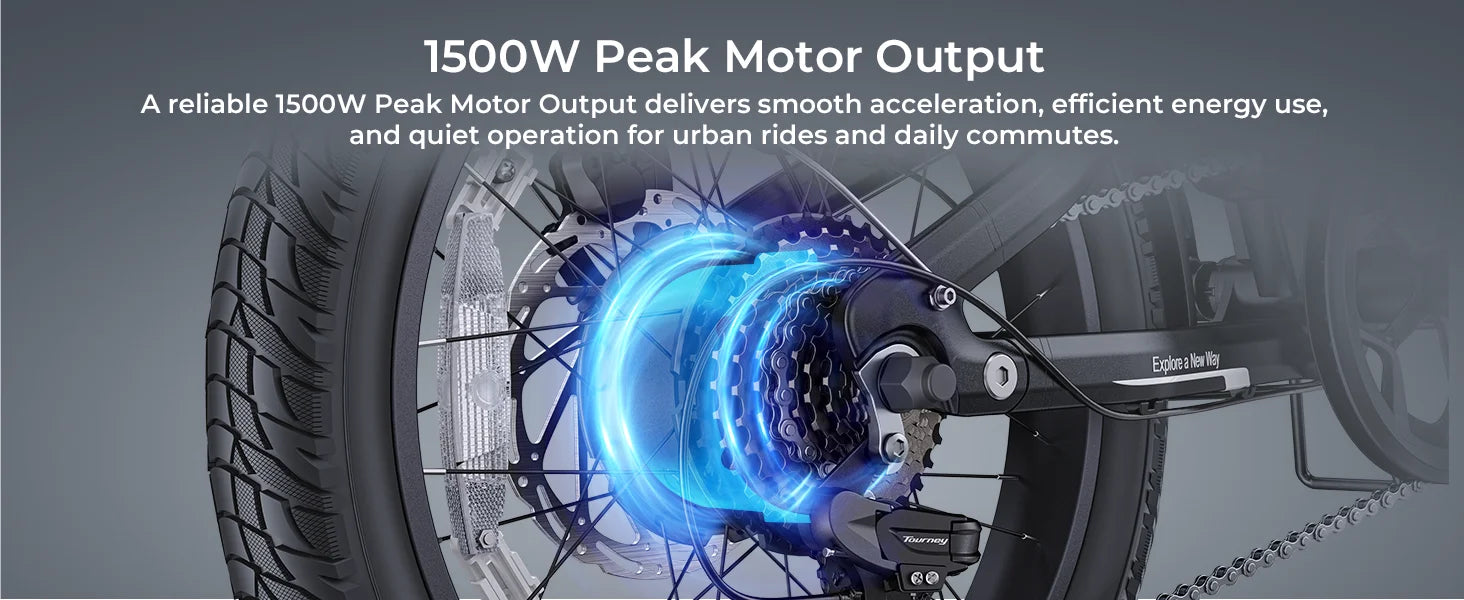

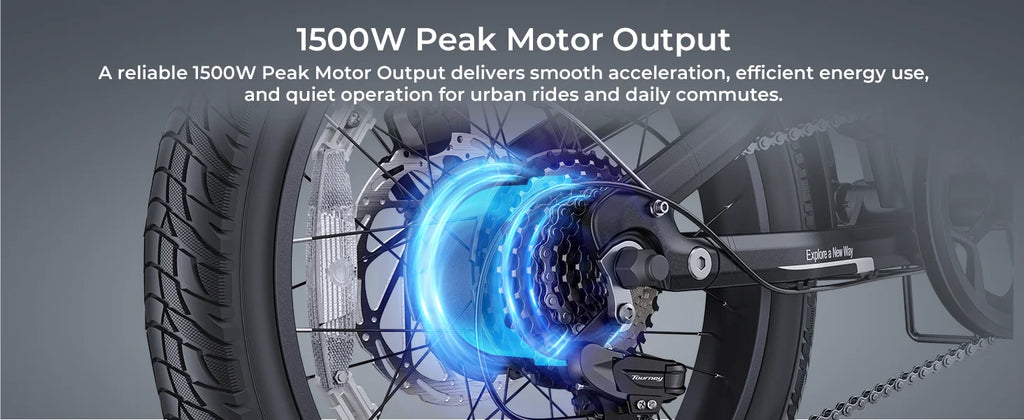

Motor: 750W Rated, 1500W Peak Hub Motor

Origin: Mainland China

Pedal Assist: 5 Levels

Pedals: Boron Steel, Non-Foldable

Power Source: Lithium battery

Power Supply: Lithium battery

Puncture Protection: 3mm Anti-Puncture Layer

Range per Power: > 60 km

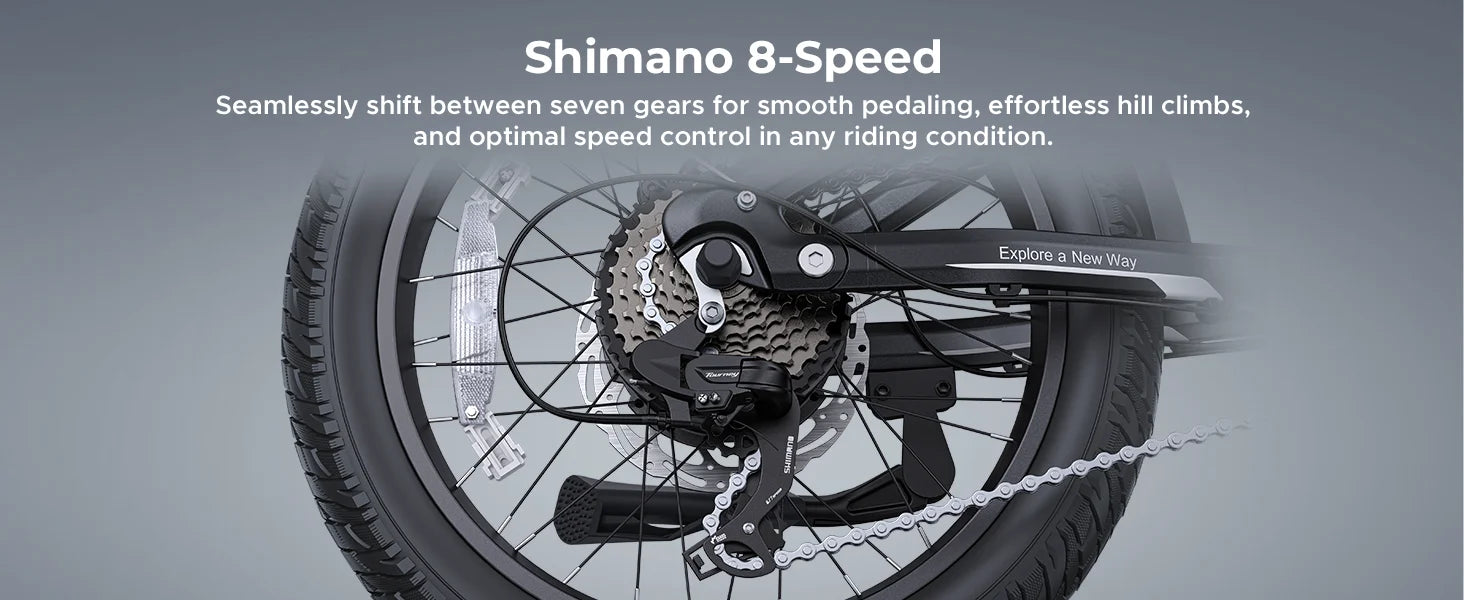

Rear Derailleur: Shimano Tourney RD-M310, 8-Speed

Rear Light: Automatically brightens When Braking or Shaking

Rear Suspension: 30mm Travel Wheel Set

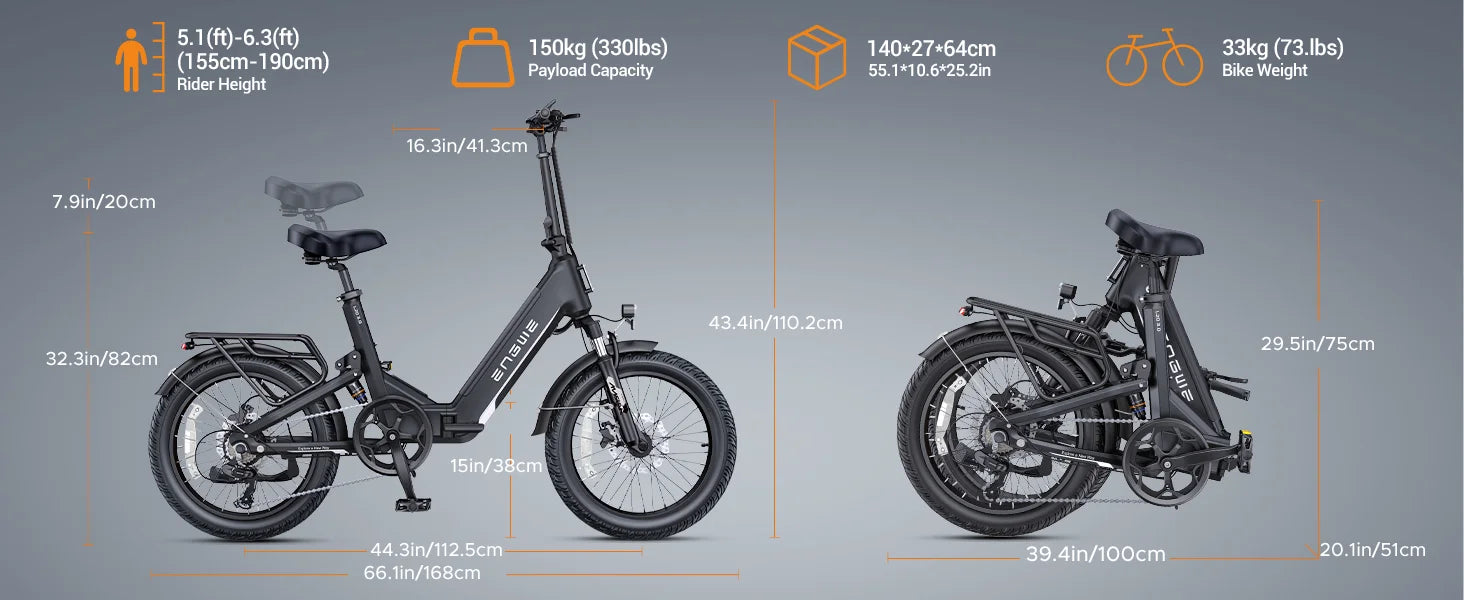

Ride Height: 5'0" - 6'2" (155cm - 190cm)

Saddle: ENGWE Soft Saddle

Seat Clamp: Quick-Release

Seat Post: 10-Level Adjustable

Shifter: Shimano SL-M315-8R

Stem: Foldable

Terrain: Tarmac Roads & Bicycle Routes Gravel-Paved Paths Sandy Beaches & Grass Country Roads & Paved Trails

Tires: 20 x 3.0 Urban Hybrid Tires

Voltage: 48V

Waterproof Ratings: IPX4

Wheel Size: 20 x 3.0

Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black
