SPECIFICATIONS

Battery: Samsung 21700 Li-ion 720Wh, 48V15A(36V20A)

Battery Capacity: 15 AH

Battery Position: Integrated Battery

Braking System: Hydraulic Disc Brake (Hydraulic Brake Pad)

Brand Name: NONE,TWITTER

Cassettes: SUNSHINE-12S,11-50T

Charging Time: >3 hours

Cranksets: Matching with Mid Motor, 38T

Derailleur Lever: SHIMANO DEORE/M6100-12S

Fork: MgAl alloy, Air suspension,150mm,Manual,Thru-axle 15*110 Boost

Frame: High modulus Carbon fiber

Frame Material: Carbon Fibre

Gears: 12 Speed

Handelbar Sets: Alu alloy,Matte,Handlebar 31.8*720,Stem 80, Clamps 34.9mm

High-concerned chemical: None

Material: COTTON

Max Speed: 30-50Km/h

Max Torque: 95 N.m (Peak 130N.m)

Model Number: EM10 M510+48V15A

Motor: Bafang Mid, M510, 48V250W (36V250W)

Motor position: Central Motor

Place of Origin: Zhejiang, China

Power Supply: Lithium Battery

Range per Power: > 60 km

Rear Derailleur: SHIMANO DEORE/M6100-12S

Tire Width: 29*15", 29*17", 29*19", 27.5*15", 27.5*17", 27.5*19"

Torque: >100 Nm

Voltage: 48V

Wheel Size: 29"/27.5"

Note:Friends, if you are interested in my product, please contact me, and I will give you a more suitable price， We can provide freight service, such as sea freight, the freight price is cheaper than the express price you see, please contact us, we will provide you more information and quotation!  Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase! WhatsApp/WeChat:  Dorothy+86 19091709331 Email:yihua.dorothy@gmail.com

Products Description

General Information

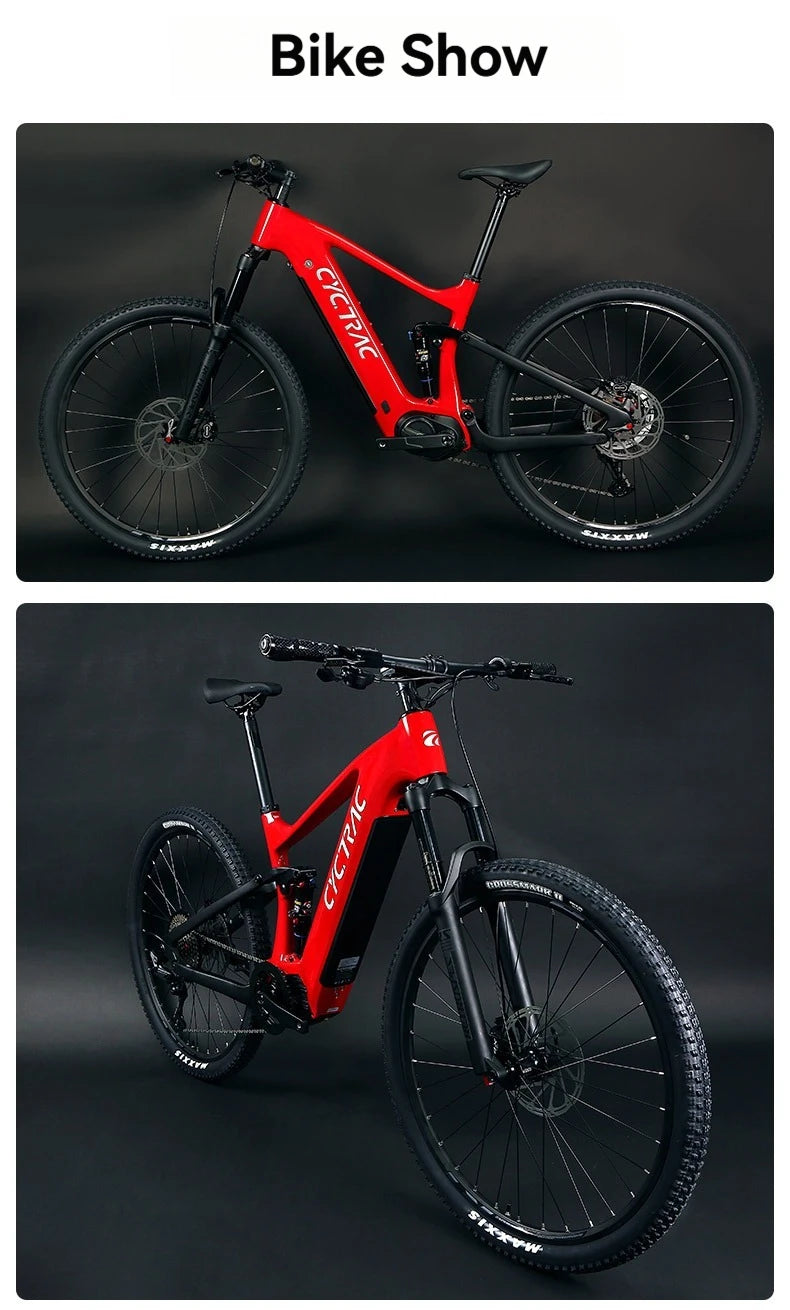

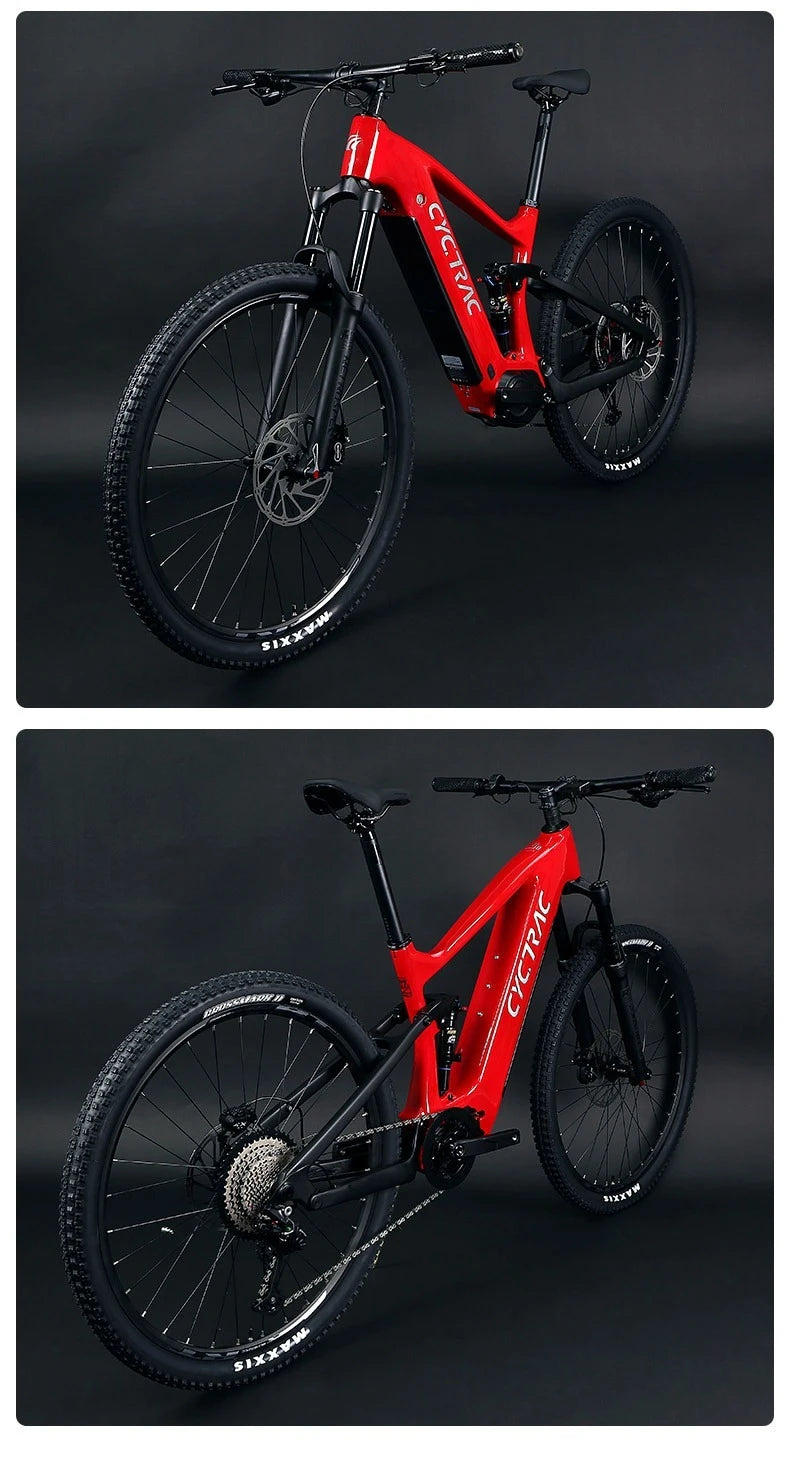

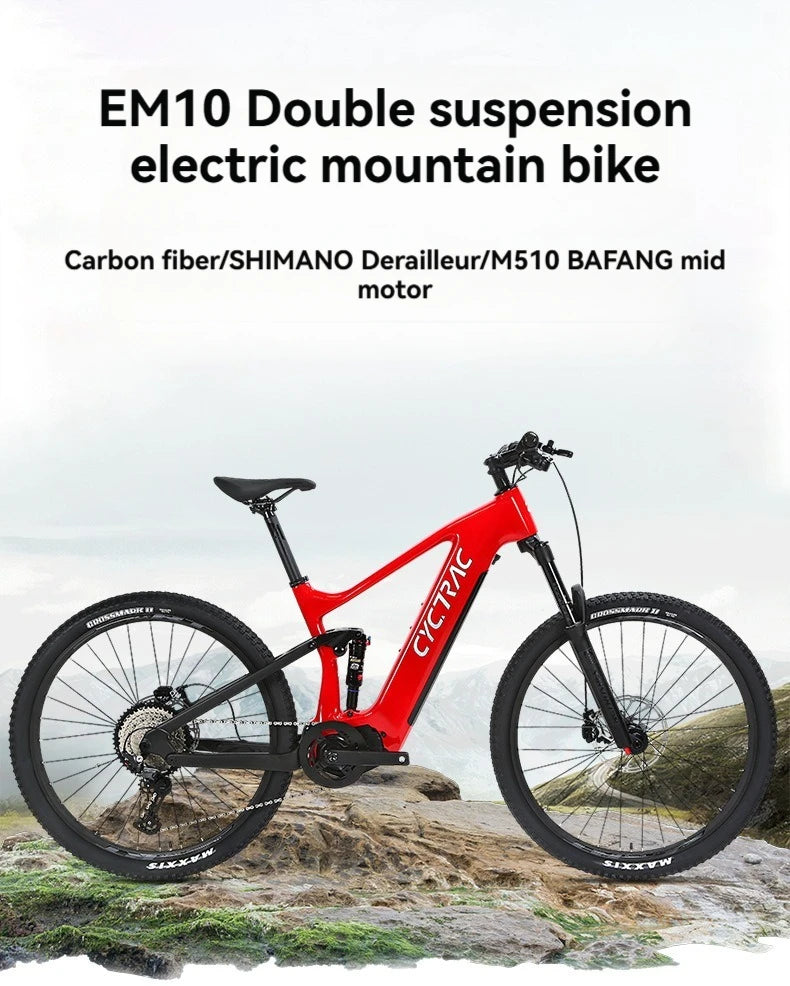

* Bike Model: EM10
* ConfRev: M510+48V15A (36V20A), LOW
* Frame Size: 29(27.5)×16" / 17” / 18“

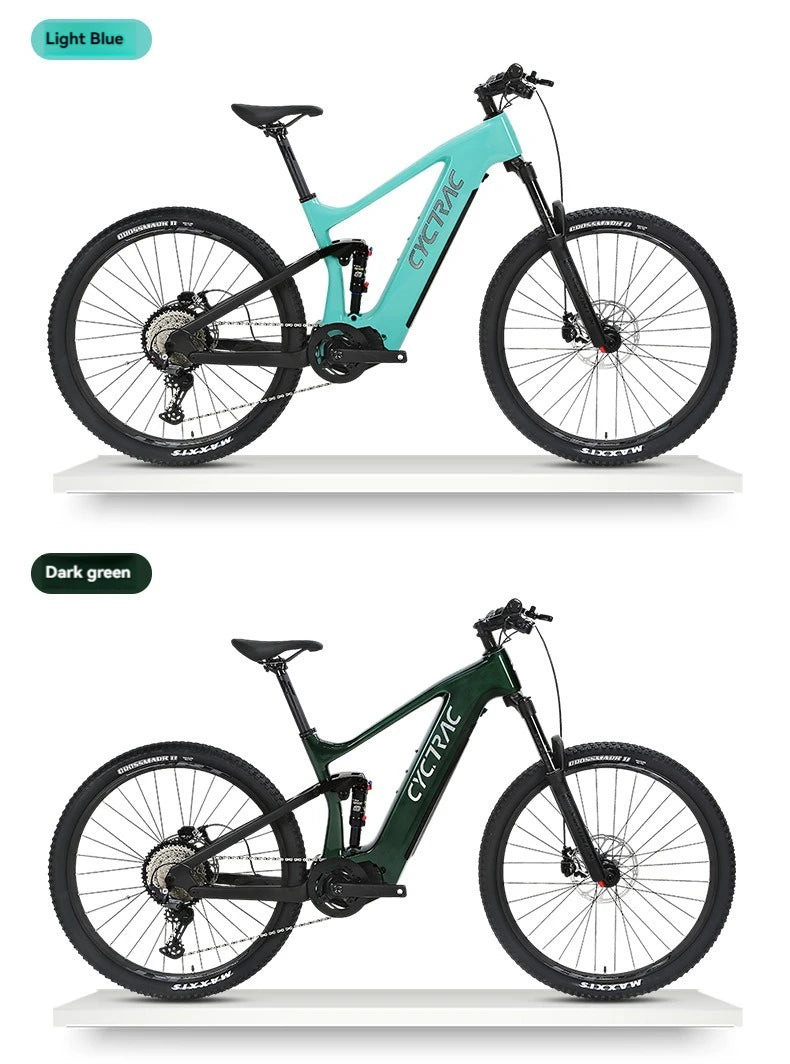

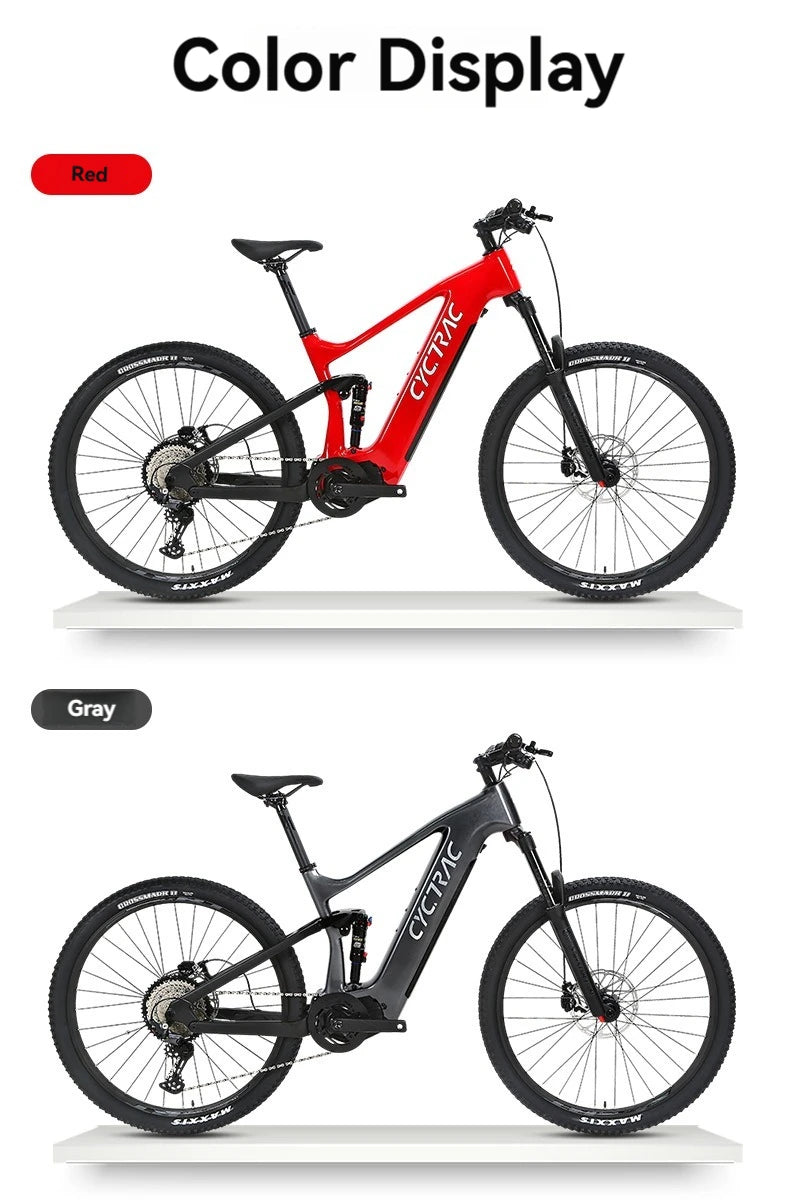

* Bike Color: DarkGreen / DarkGrayBlack / RedBlack / BlueBlack / HolographicBlack
* Net Weight: 23.1 kg

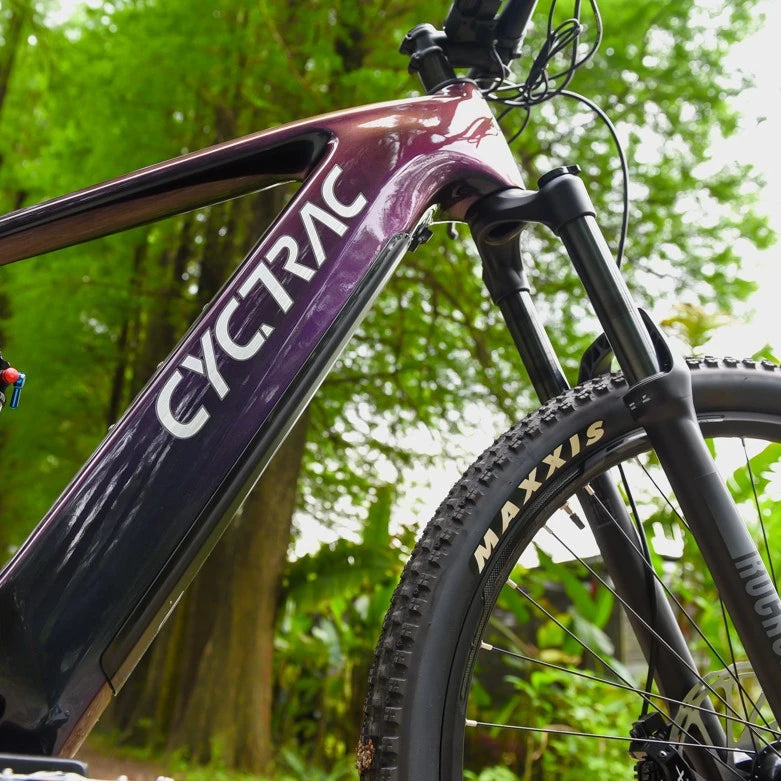

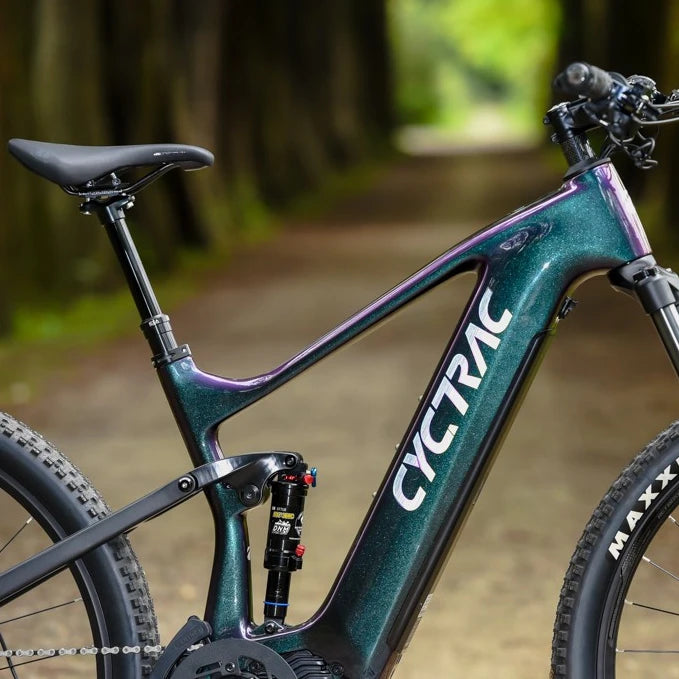

Frame

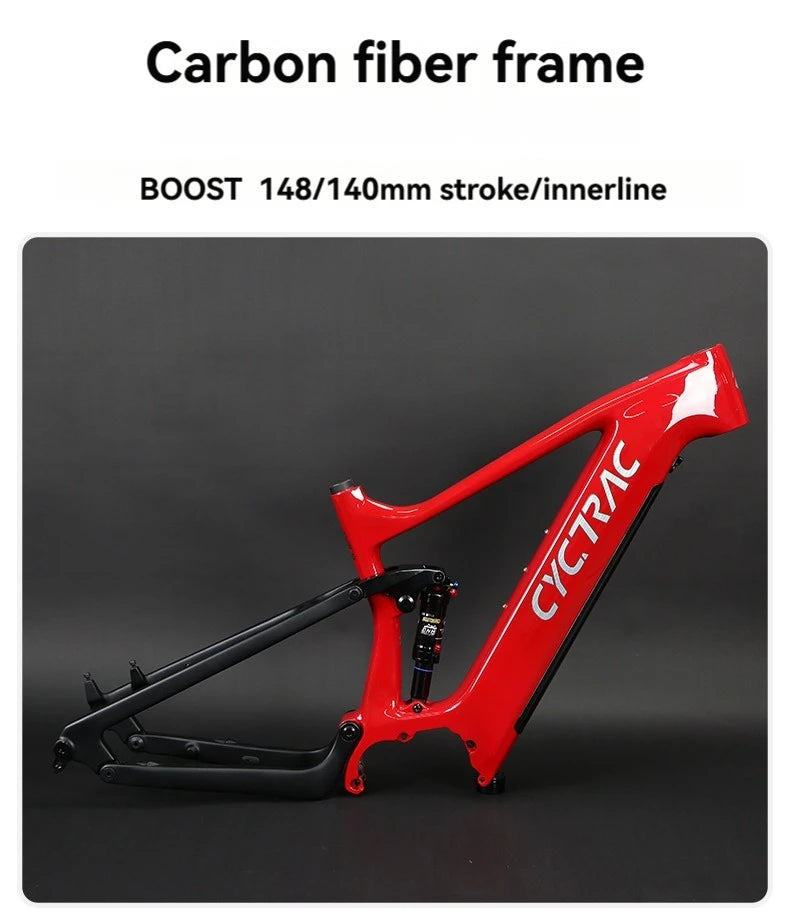

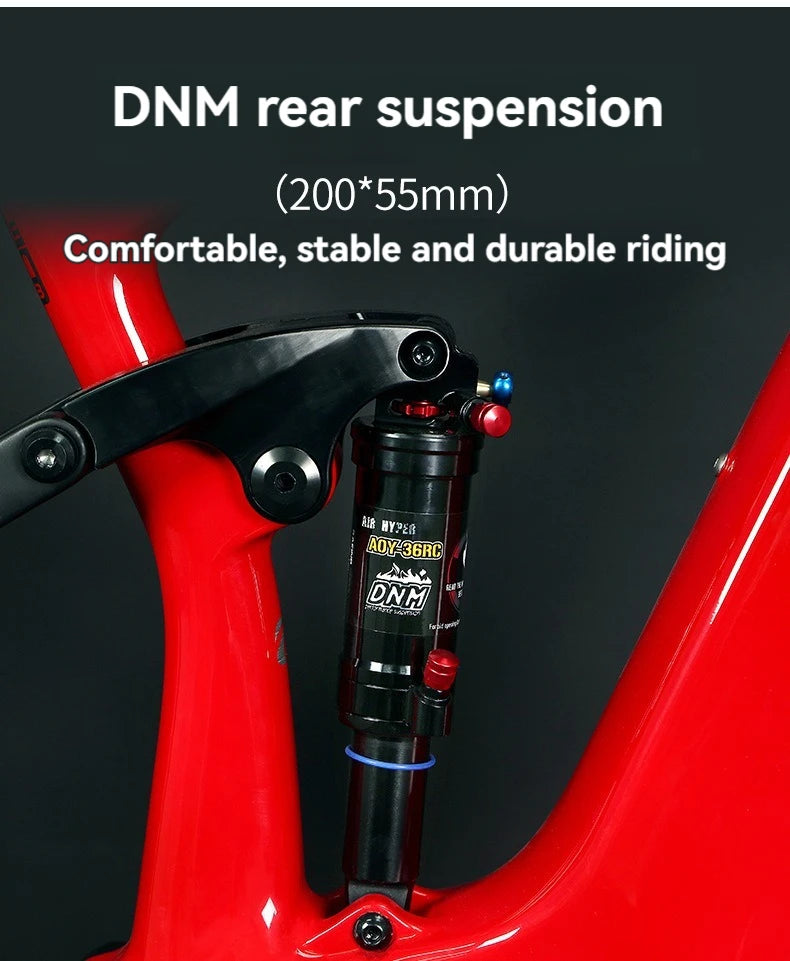

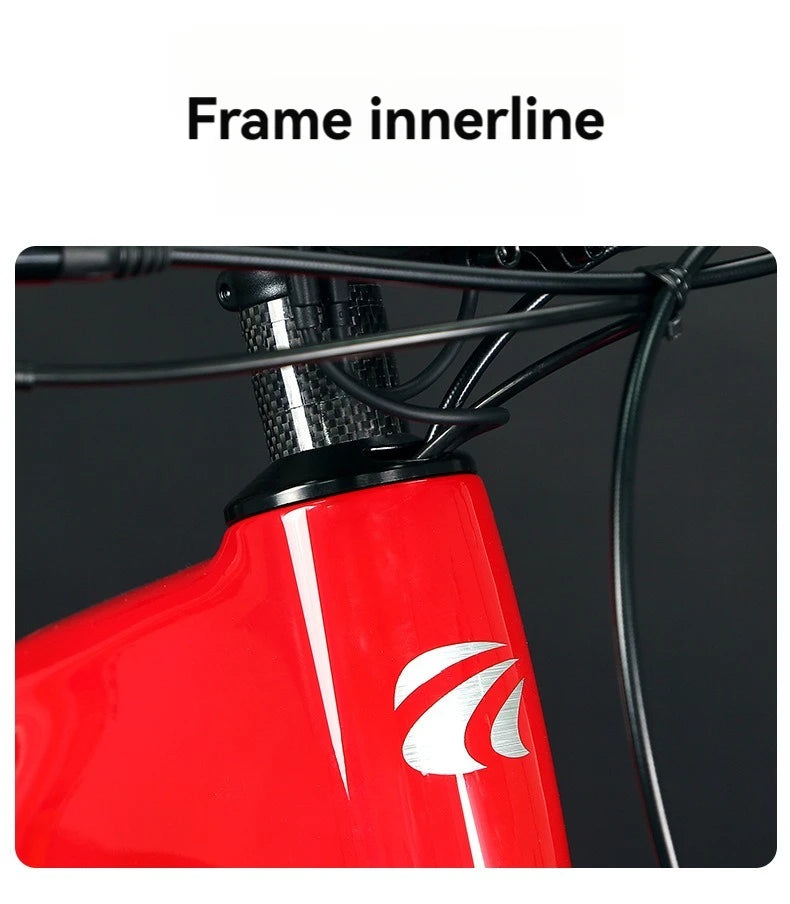

* Frame: CYCTRAC, EM10, AM, High modulus Carbon fiber, Inner cables, Thru-axle 12148 Boost, 140mm Travel, DNM rear shox 20055, Gloss + UV laser decals
Cockpit

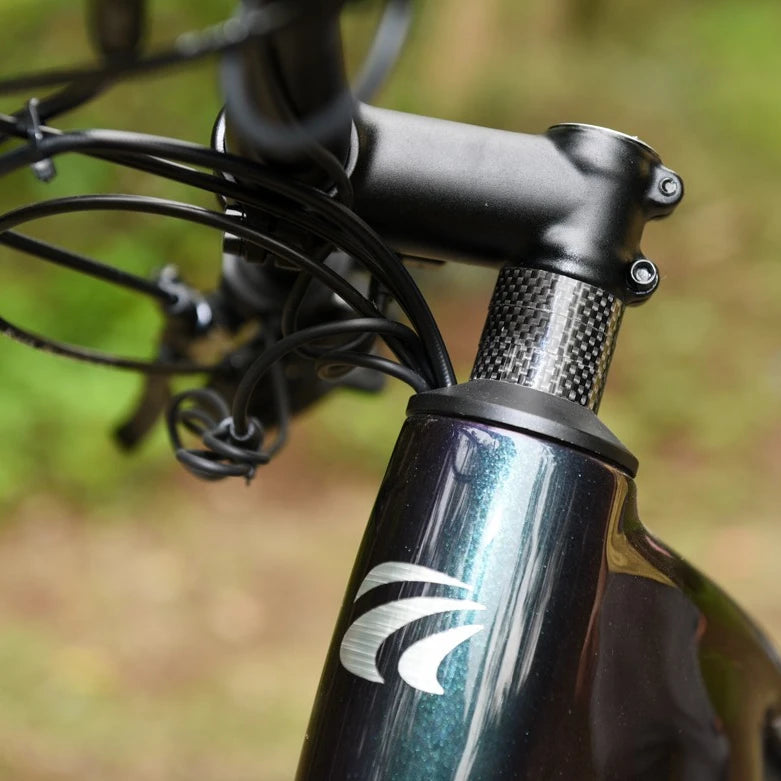

* Handlebar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720mm, Stem 80mm, Clamps 34.9mm
* Seat post: RS, Alu alloy, Matte, 31.6×350mm
Fork

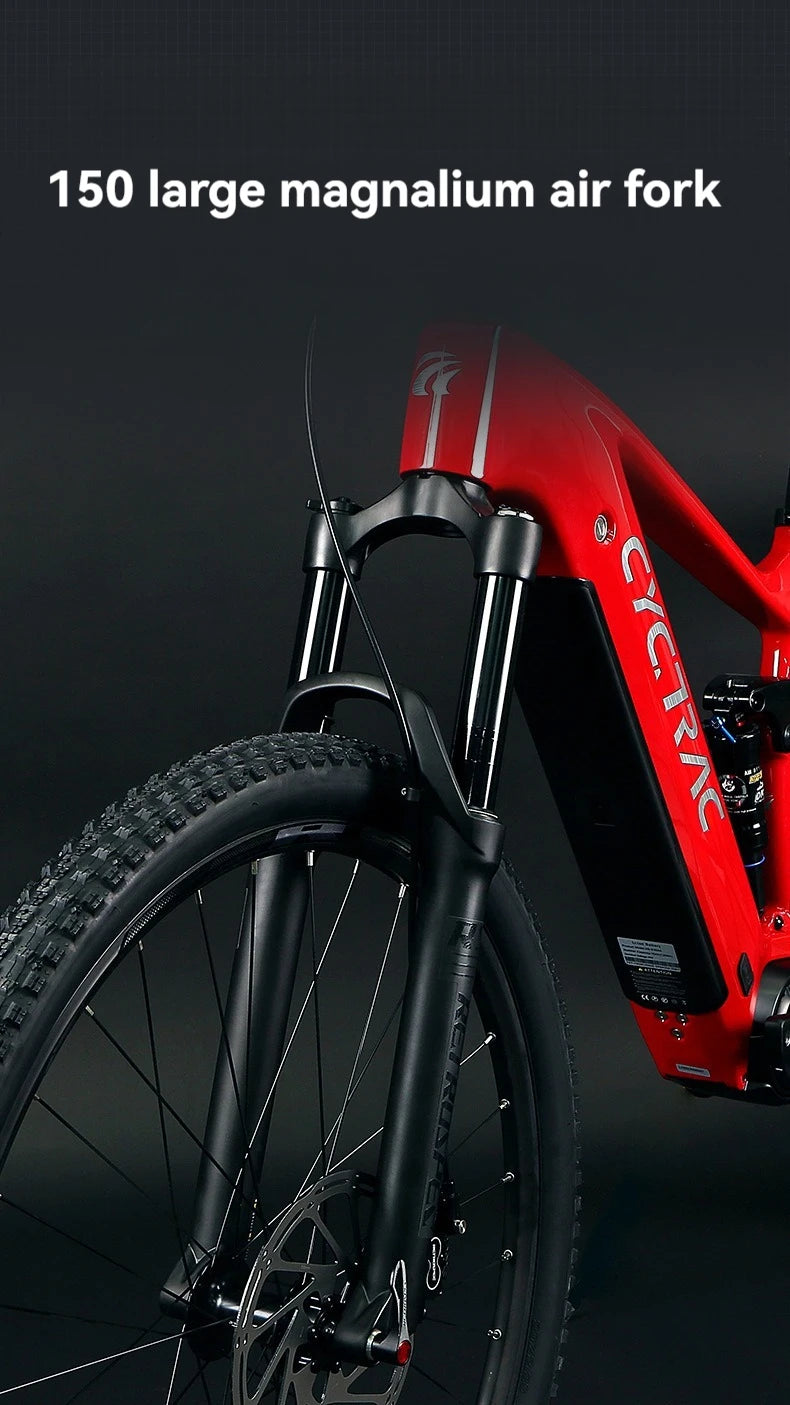

* Fork: RS, MgAl alloy, Air suspension, 150mm, Manual, Thru-axle 15*110 Boost
Head Sets
* Head Sets: Alu alloy CNC with sealed Bearings 52×52mm
Drivetrain

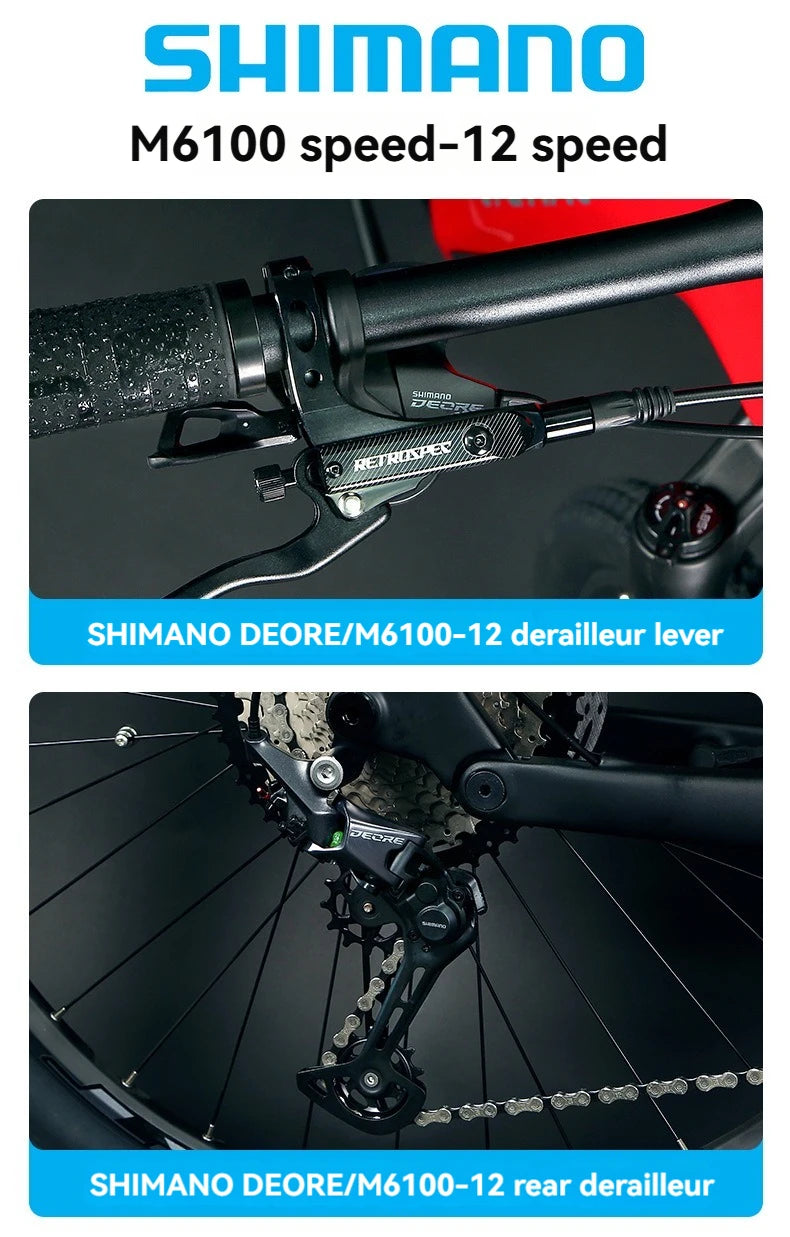

* Derailleur Lever: SHIMANO DEORE/M6100-12S
* Rear Derailleur: SHIMANO DEORE/M6100-12S
* Cranksets: Matching with Mid Motor, 38T
* Cassettes: SUNSHINE-12S, 11-50T
* Chain: SUMC-12S
Braking System

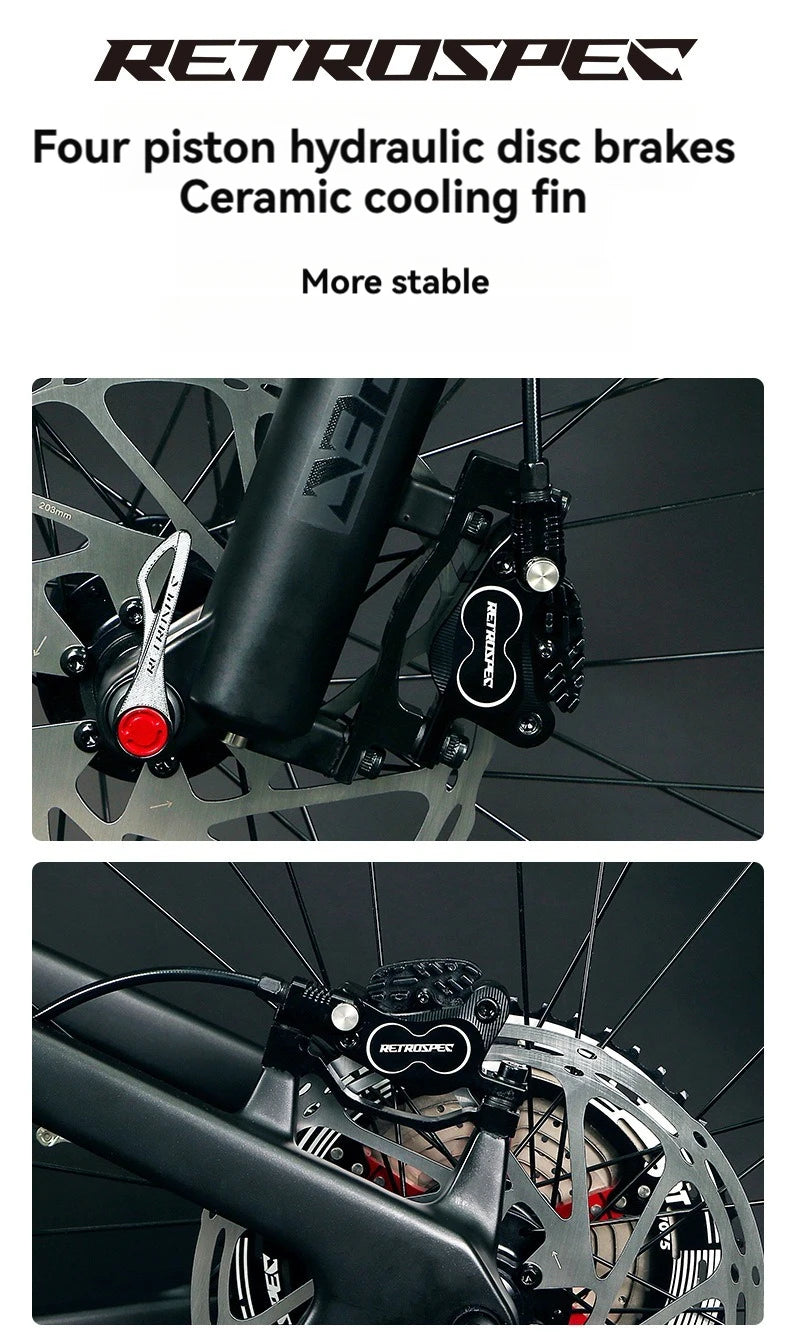

* Brake: RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
Wheel Set
* Hub: RS, Alu alloy, 4-sealed Bearings, Slotted, Disc, 32 Holes, Thru-axle F15×110_R12×148mm Boost
* Rim: RS, Alu alloy with Double-wall & Rivets, W24×H19mm
* Spokes: SHUNJIU, Circular 14G
* Tire: MAXXIS, CROSSMARK, 29/27.5×2.25"
Grips
* Grips: Circular 22.2×120mm, PU leather & locking Ring
Saddle
* Saddle: RS, Comfortable and Thickened for MTB
Pedals
* Pedals: RS, Alu alloy CNC with Bearings for MTB
Motor & Battery

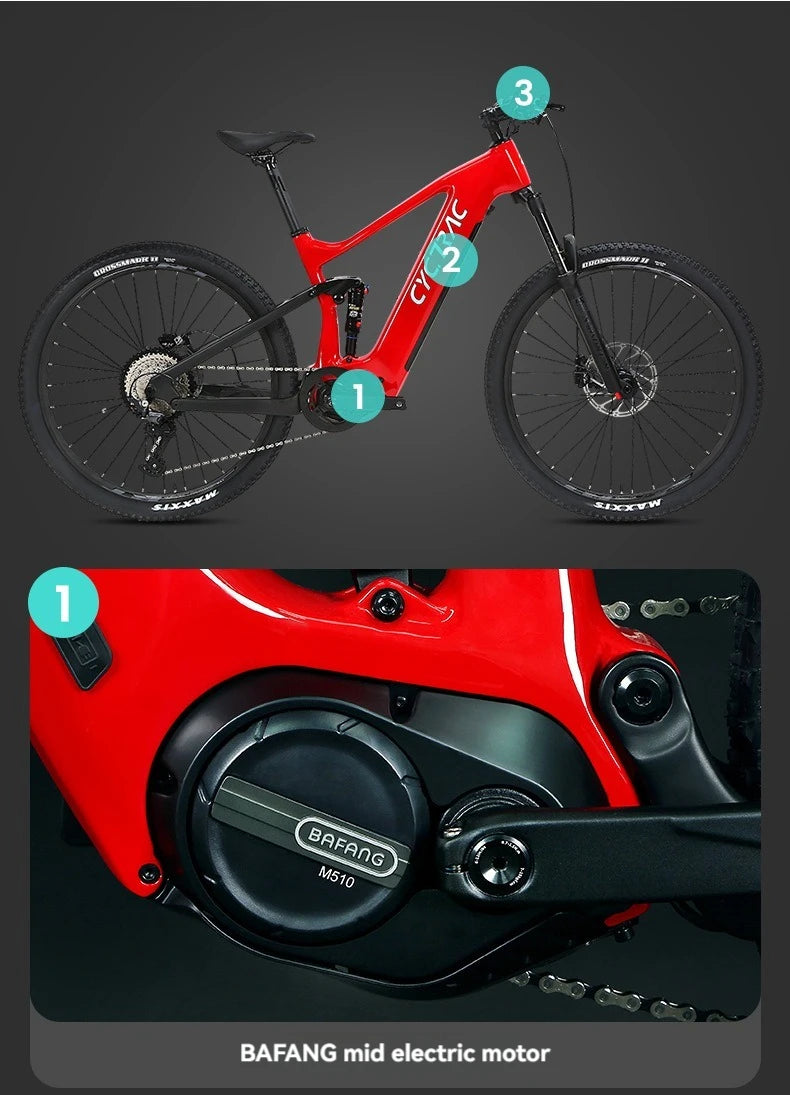

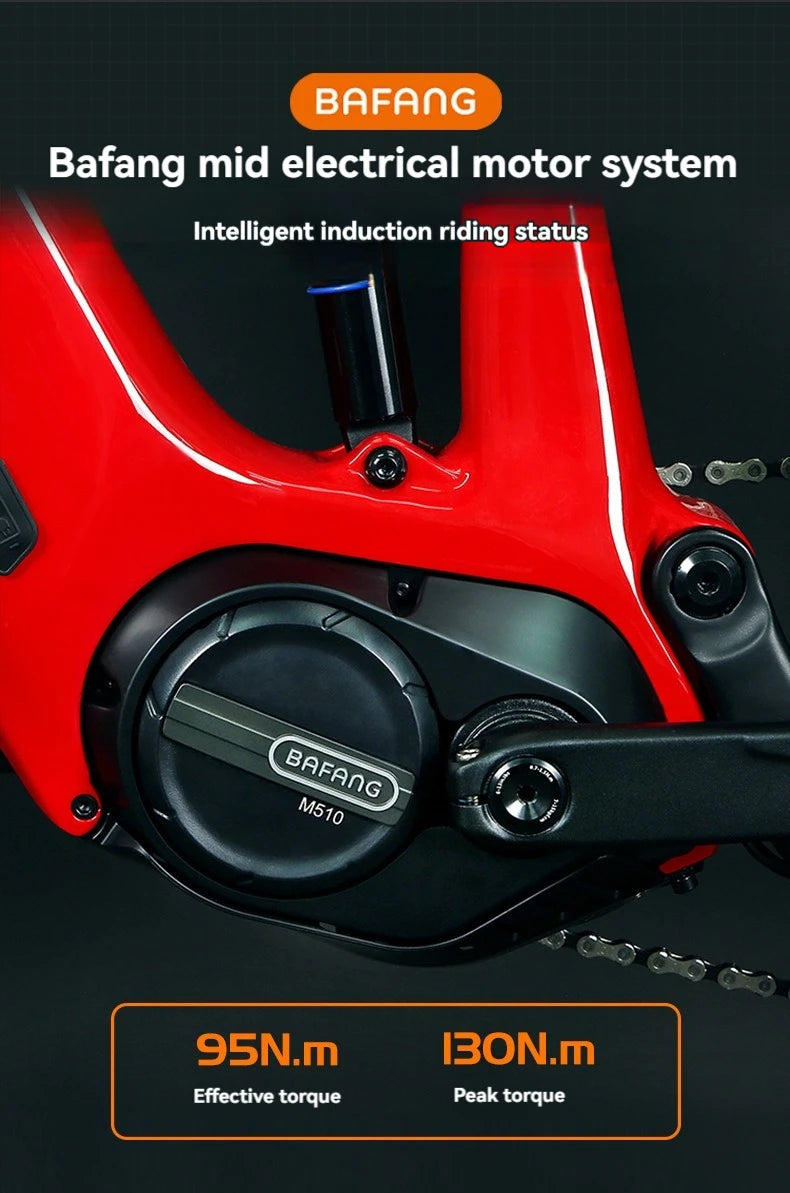

* Motor System: Bafang Mid, M510, 48V250W (36V250W)
* Max Torque: 95 N.m (Peak 130 N.m)
* Speed Limit: 25 km/h (max 45 km/h)
* Pedal Sensor: Torque + Cadence

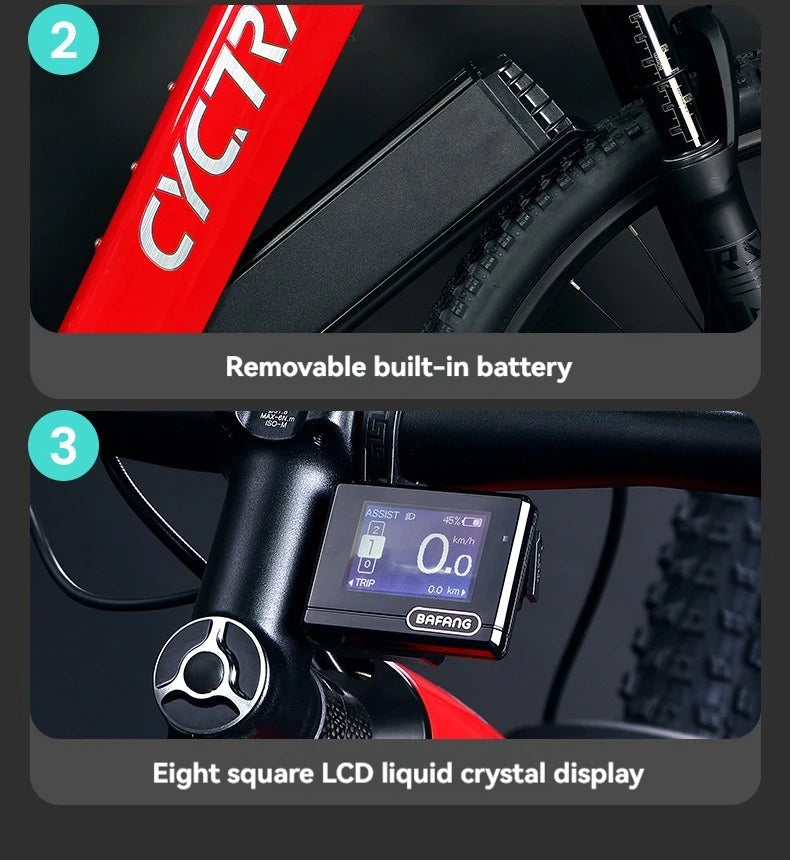

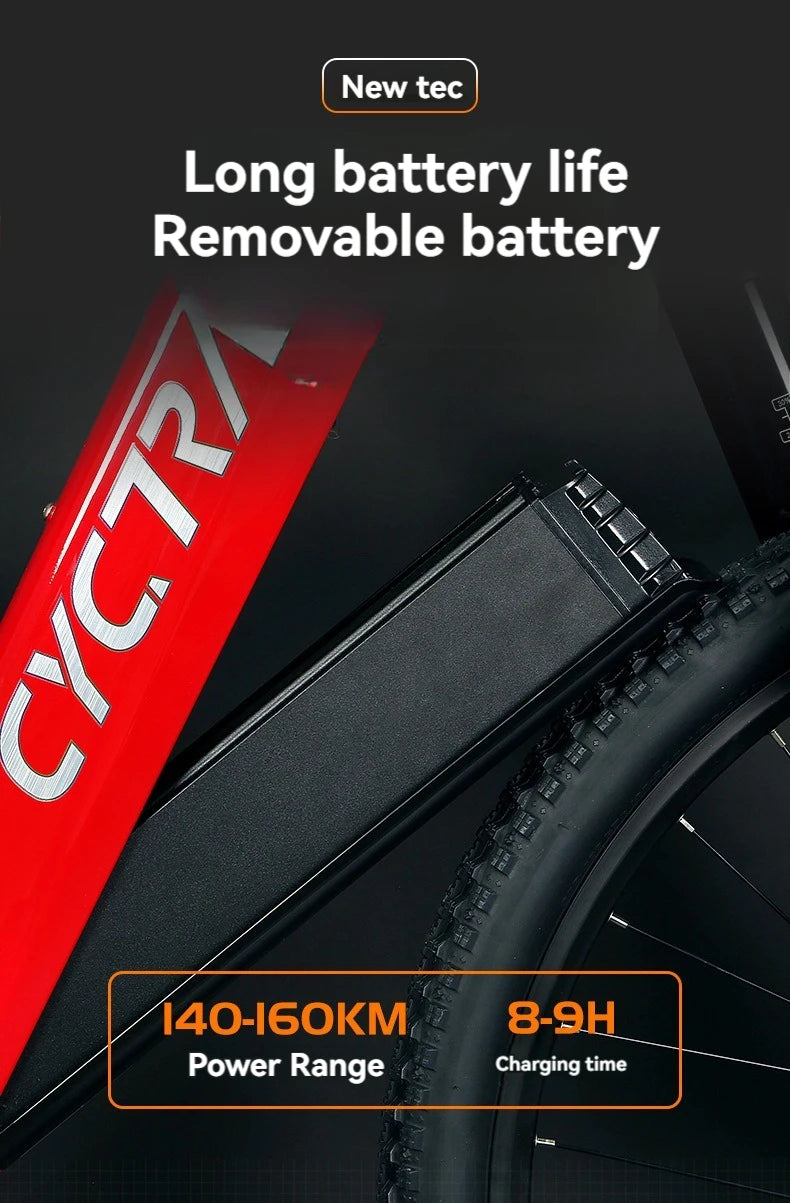

* Battery: Samsung 21700 Li-ion 720Wh, 48V15A (36V20A)
* Endurance: 140-160 km (pedal assist)
* Charging Time: 8-9 hours
* Charger: 2A, DC2.1

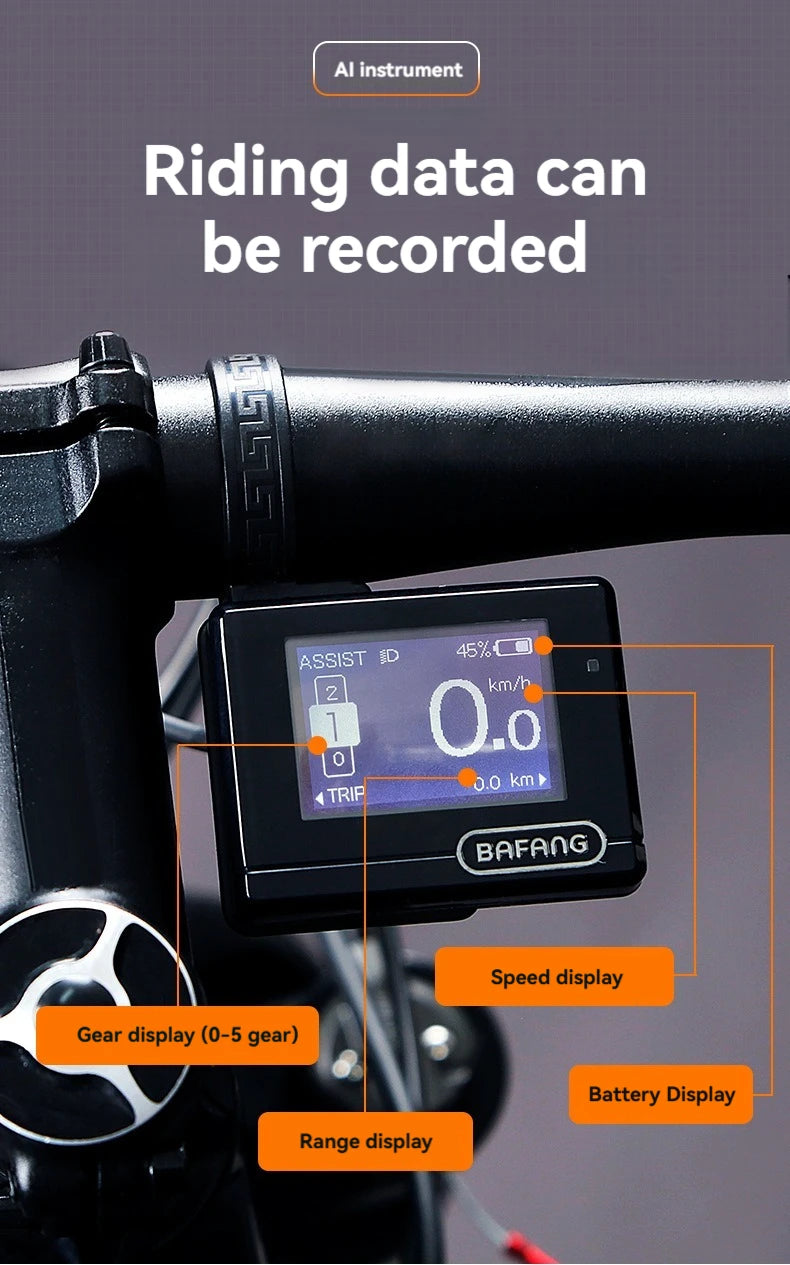

Controller & HMI

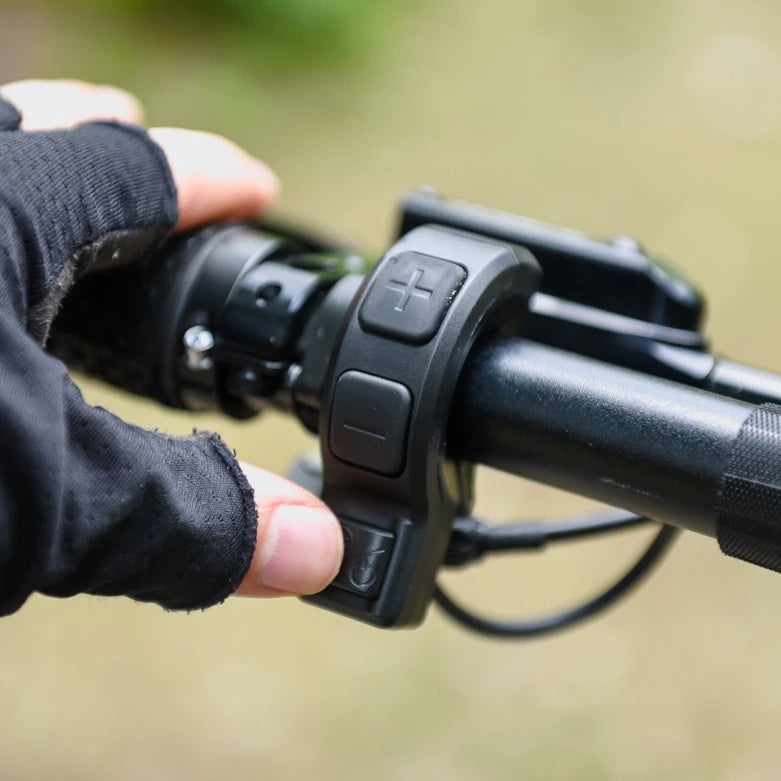

* HMI: Bafang, LCD digital, 0-5 Modes
Waterproof
* Waterproof: IP X5
Max Load
* Max Load: 150 kg
