SPECIFICATIONS

After-sales Service: Onsite Training and Inspection,Free Spare Parts,Return and Replacement,Repair,Others

CPU: Intel Core i7-8705G i5-8305G

Computer Dimension: L228.8*W148*H51.8mm

Consumption: DC +12V~+19V, recommend 19V 13.16/9.47A

Dispaly Port: 2 x HDMI2.0, 2 x Mini-DP

Function: PXE, Auto Power On, RTC, Wake On LAN

Graphics Card: Dedicated Card Radeon RX Vega M GH

Memory Capacity: 2 x SO-DIMM DDR4 Support 4GB/8GB/16GB/32GB/64GB 2666 MHz, 3200 MHz

Storage: 2 x M.2 NVME SSD(SSD1 supports M.2 SATA )

USB Port: 4*USB3.0+4*USB 2.0+1*Type-C 3.1

Warranty(Year): 3-Year

Weight: Net 2.2kg, Gross 2.5kg

brand name: EGLOBAL

chipset type: Other

color: Black

dispaly ratio: Other

display resolution: Other

display type: None

graphics card chipset: Dedicated Card

graphics card type: Dedicated Card

hard drive type: SSD+HDD

hdd rotation speed: Other

model number: VX1

mouse & keyboard: No

operating system: Windows 10

optical drive type: No CD ROM

place of origin: Guangdong, China

plugs type: US,JP,AU,UK,EU

power: 250 W

private mold: No

processor brand: Intel

processor core: Quad Core

processor main frequency: i5-8305G 2.8GHz-3.8GHz: i7-8705G 3.1GHz-4.1GHz

products status: New

ram type: DDR4

screen size: No Monitor

series: For Gaming

type: Desktop

use: Gaming

video card: Radeon RX Vega M GH Graphics

video memory: Other

video memory type: With the main memory

widescreen: No

Recommend Products

Product Description

Basic Information:

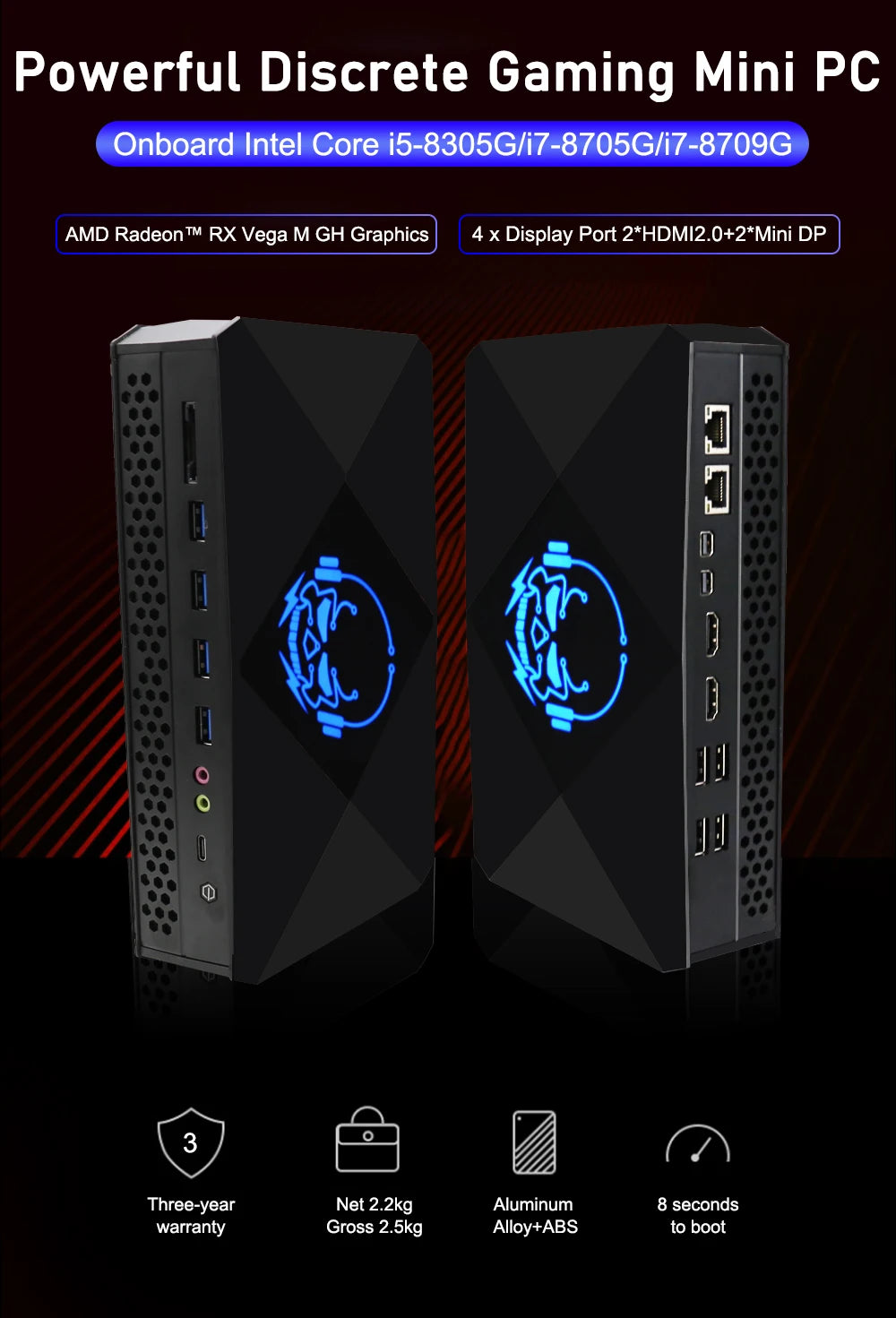

CPU	Onboard Intel Core i5-8305G/i7-8705G/i7-8709G
TDP	65W/100W
Level 3 Cache	6MB/8MB
Motherboard	200 x 142mm customized size
BIOS	American Megatrends Inc. 5.12
Chipset	Kaby Lake
Memory	2 x SODIMM-DDR4 Slot, up to 64GB, DDR4-2400NHZ,2666MHZ,3200MHZ
OS	Windows8/10, WES10, LINUX
Audio	AMD High Definition Audio Controller
Network	2 x Onboard Intel RTL 8111 + Intel i219 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Video	Radeon™ RX Vega M Graphics

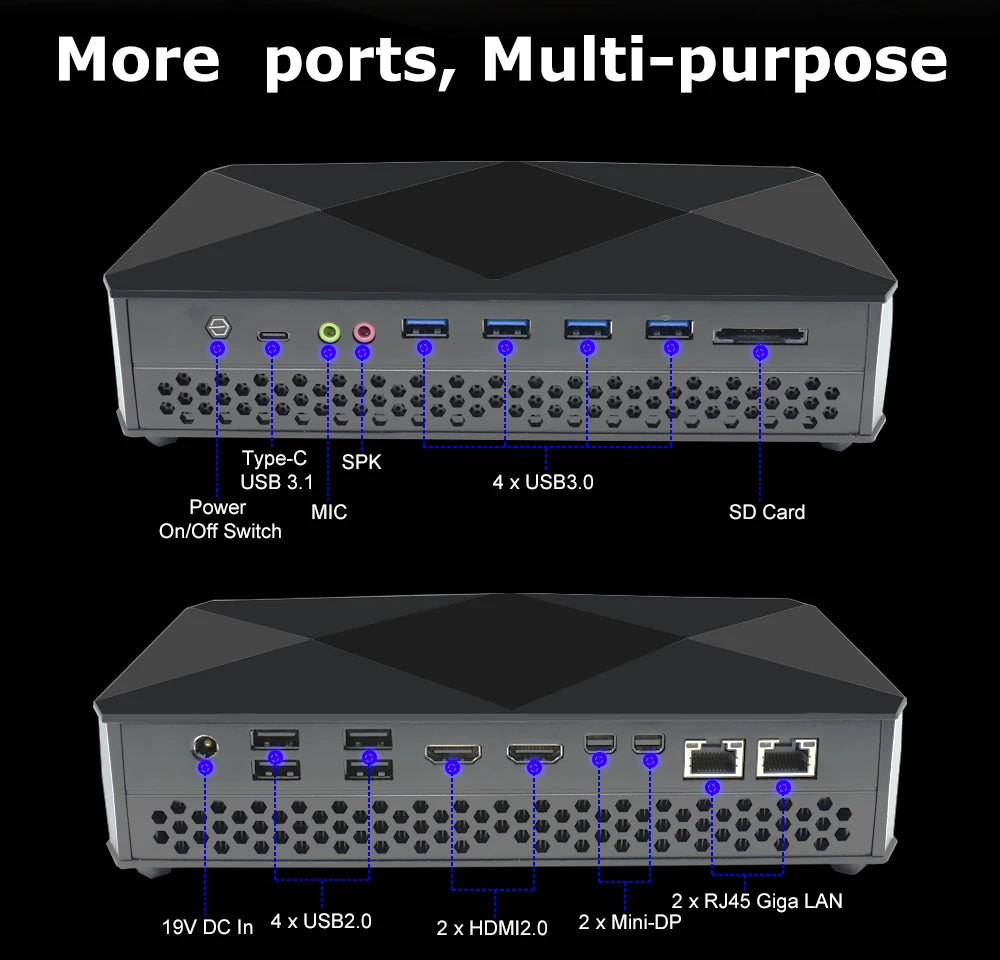

Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 19V DC In
USB	4 x USB3.0, 4 X USB2.0

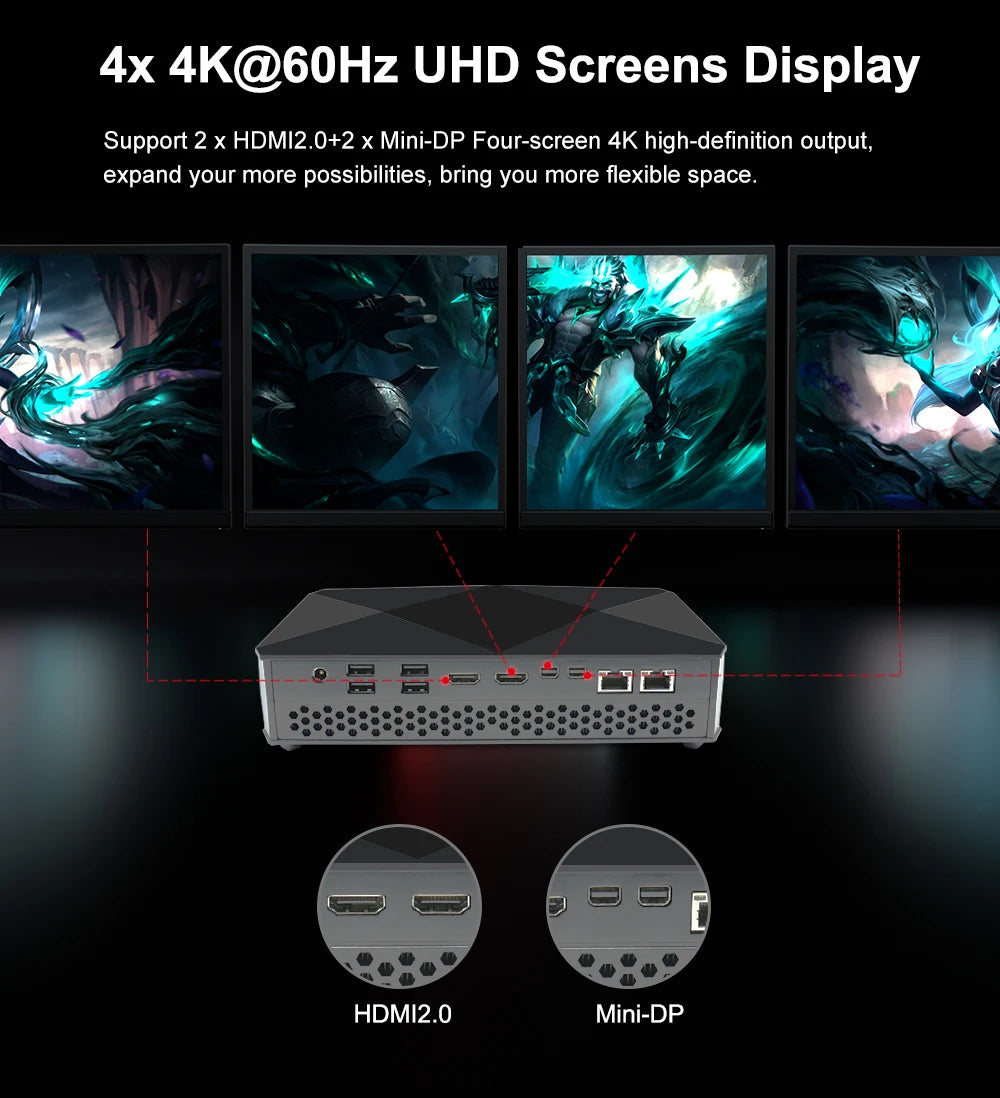

Display	2 x HDMI2.0, 2 x Mini-DP
LAN	2 x RJ45 LAN
Audio	1 x MIC, 1 x SPK
Others	1 x Type-C USB 3.1, 1 x SD Card
M.2	2 x M.2 NVMe/PCIE3.0x4 22*80 SSD, up to 2TB, (SSD1 supports M.2 SATA )
Module	1 x M.2 NGFF 2230(Key E) slot for WiFi+BT5.1
Output	DC +12V~+19V, recommend 19V 13.16/9.47A
Product Dimension & Details

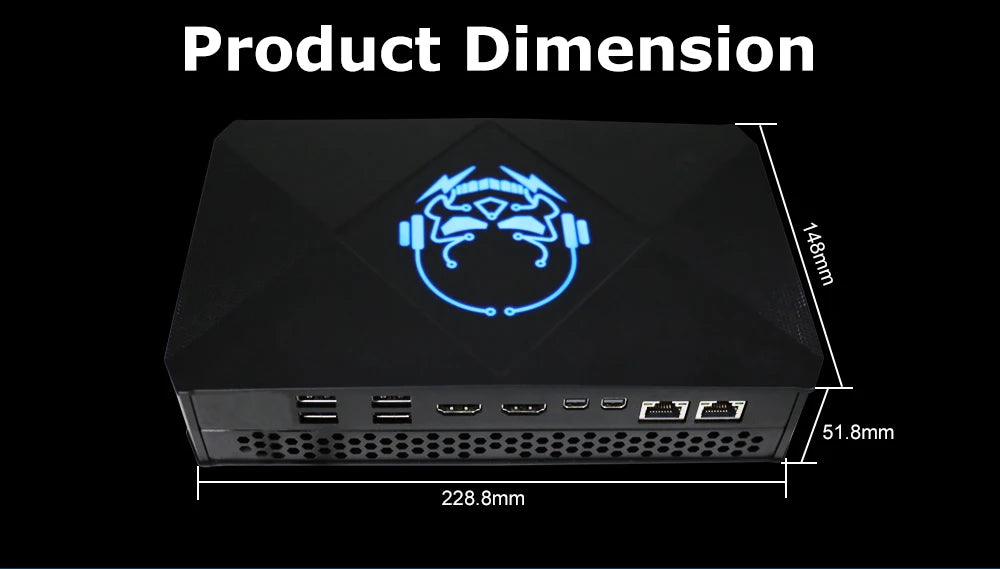

Size	L228.8*W148*H51.8mm
Weight	Net 2.2kg, Gross 2.5kg
Shell	Metel Grey Color Aluminum Alloy+ABS
Cooling Mode	Silent turbo cooler
Functions	PXE, Auto Power On, RTC, Wake On LAN
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,
Optional	1xUser Manual, 1xHDMI cable

Details Images

Packing&Shipping

Company Introduction

FAQ

Welcome to read the following questions carefully at first when you place order via the product link. Thanks.

Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1 set, welcome to order via the link directly.We also provide free OEM service for your sample order, just feel free to contact our Sales here.

Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very begining of manufacturing and 3 Years Wareanty.

Q: What's EGLOBAL's Warranty?
1. EGLOBAL Mini pcs have 3 years warranty service is completely reliable and professional technical team. Motherboard warranty time 3 years, ram, hard drive, accessories(excluding gift) etc warranty time 1 year.
2. Within warranty time, if mini PC appear non-human damages and quality problems, buyer return Mini PC or Mini PC components, we free repair/exchange Mini PC or Mini PC components ( include RAMs, Hard Drive, Motherboard and other accessories ). Within 1 month, seller bear all the shipping cost for return(maximum 15USD)and resend;Over 1 month to 1 year, buyer self bear the shipping cost for return and seller bear shipping cost for resend; Over 1 year to 3 years, buyer bear all shipping cost return and resend.
3. Within 15 days, we accept refund or exchange goods (buyer bear all the shipping cost, if non-human damages and quality problem, we bear all shipping cost.
4. All time calculate from the day buyer receive goods.

Q: How to solve the product problem?

A: Welcome to contact our Sales about any problems, they will provide nice service to each customer directly.
