SPECIFICATIONS

After-sales Service Provided: Video technical support

BGA Chip Size: Max 70mm*70mm Min 1mm*1mm

Certification: CE

Electrical Material: Touch screen+Temperature control module+PLC control

Function: Repair Motherboards

Heater power: Upper temp.one 1200w,second temp.zone1200w,IR temp.zone 2700w

Material: Metal

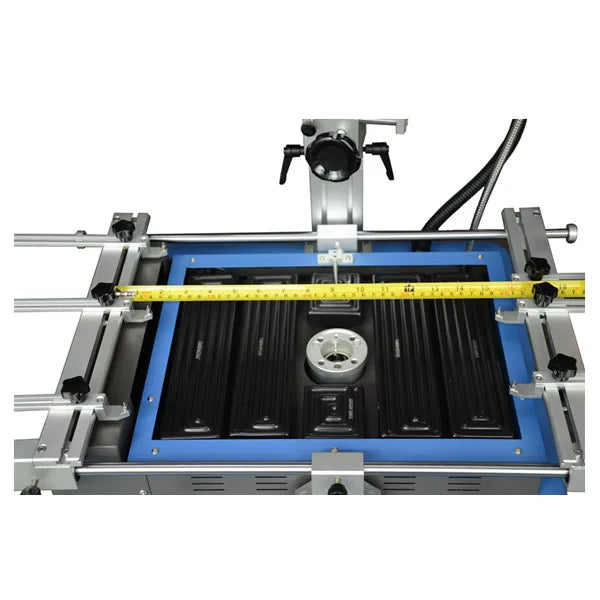

PCB size: Max 470mm*380mm Min 10mm*10mm

Power: Ac220v ±10%,50hz

Total Power: 4800W

Type: Manual

Weight of machine: 34kg

Welding Mode: welding

brand name: WISDOMSHOW

condition: New

current: 50/60hz

dimensions: L500mm*W590mm*H650mm

machine type: Welding Positioner

max.input power: 4800w

place of origin: Guangdong, China

rated capacity: 4800W

rated duty cycle: N

usage: mobile phone/laptop BGA/IC rework and repair

voltage: 220/110V

warranty: 1 Year

weight (kg): 34

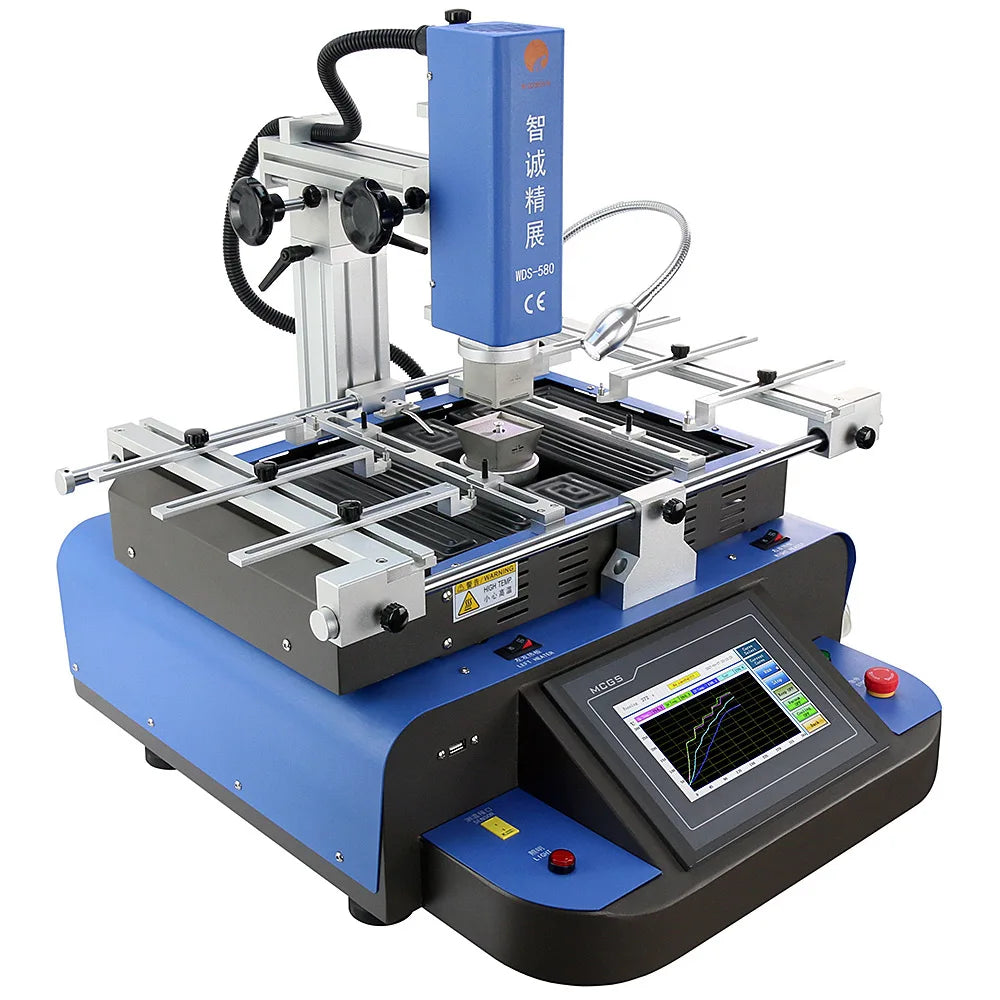

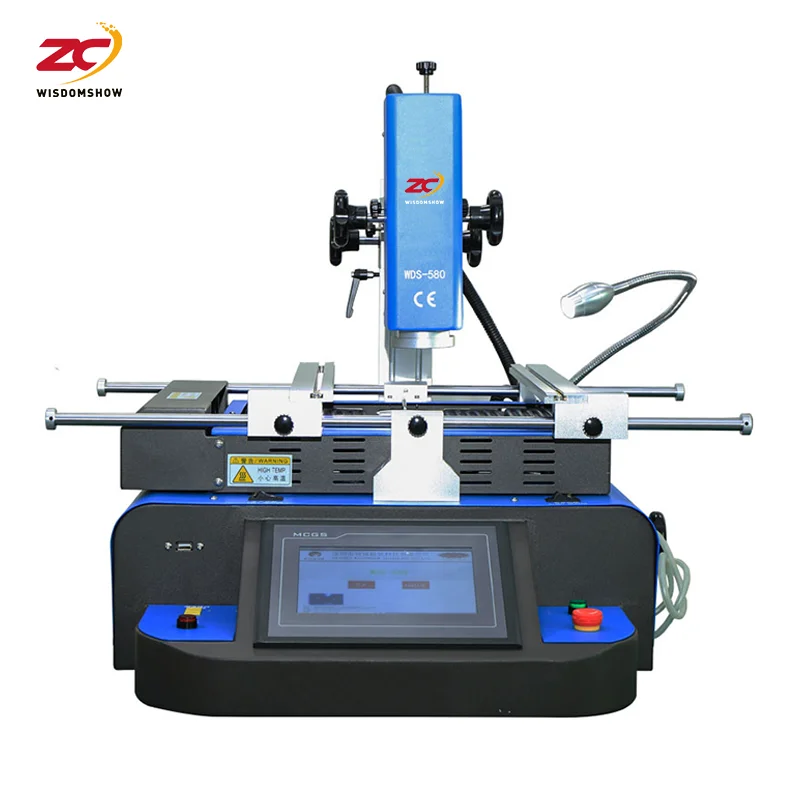

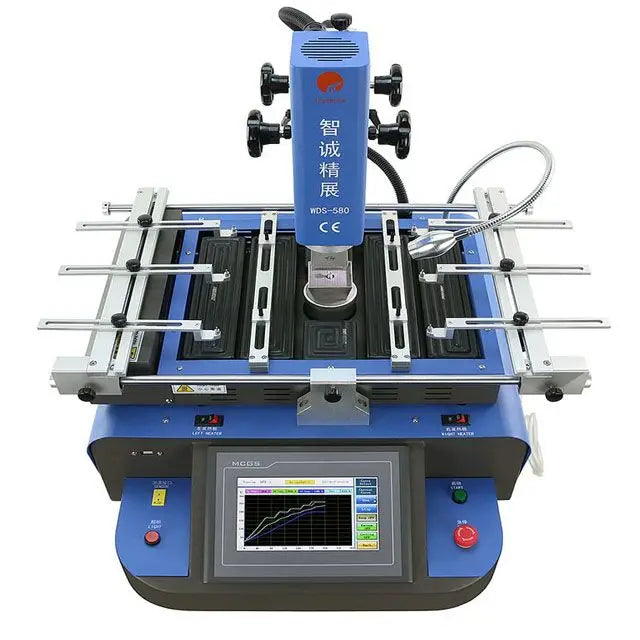

Product Description

Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone,xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.

Operation System

♦Manual mode.

♦Can solder, desolder, mount, pick and replace chip.

♦User-friendly.

Strict Temperature Control System

♦8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.

♦It adopting high accuracy K-type thermocouple close-loop control.

♦The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

Safety System

♦With CE certification.

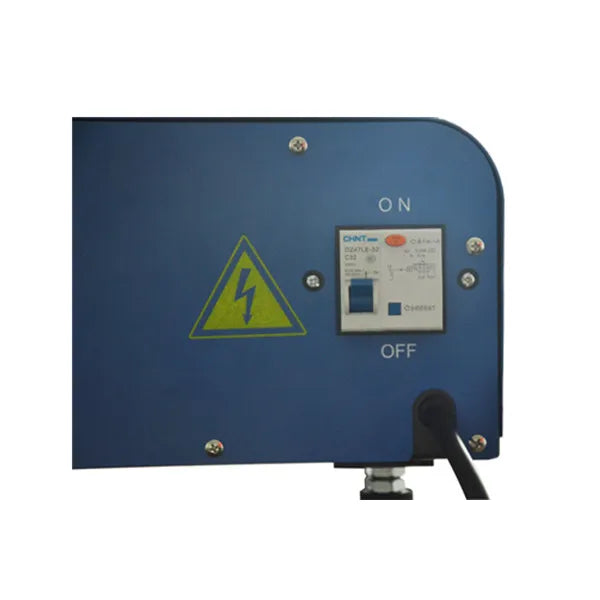

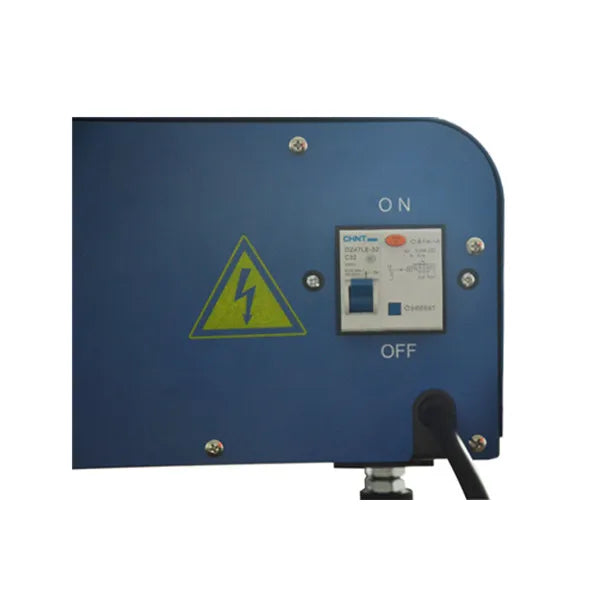

♦With automatic power-off protection device when abnormal accident happens and double over-temp protection
function

How to separate BGA chip from motherboard?
How to replace a new BGA chip?

Repair steps:

1. Separate the BGA chip from motherboard –we called desoldering

2. Clean Pad

3. Reballing or replace a new BGA chip directly

4. Alignment/Positioning – Depend on experience ,silk frame ,optical camera 5) replace a new BGA chip - we called Soldering

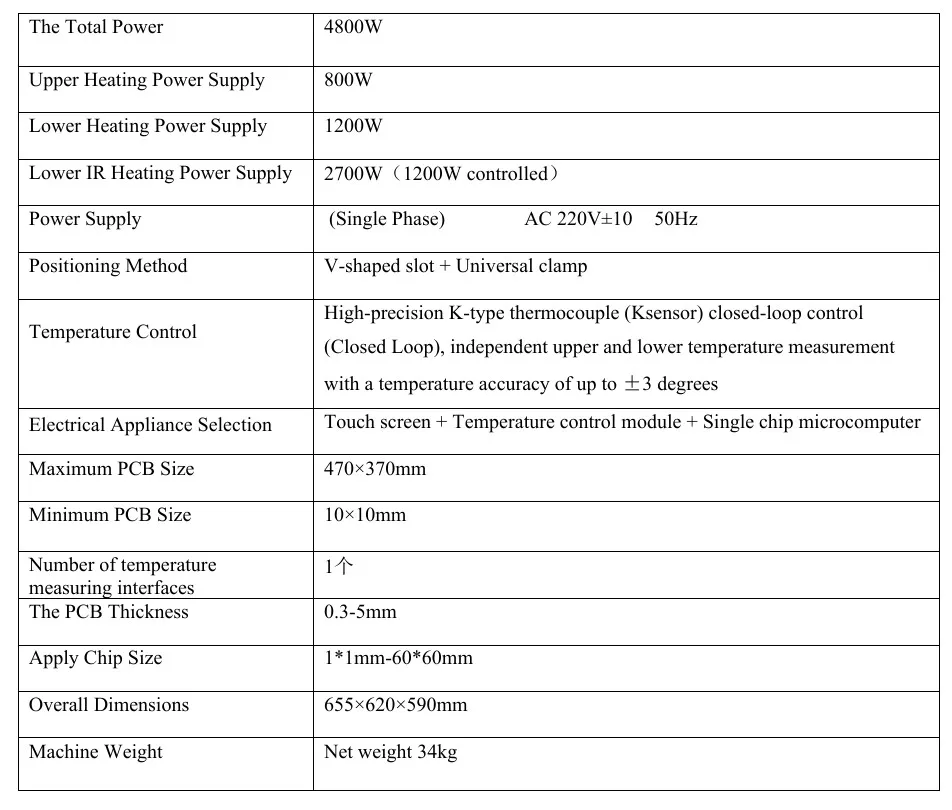

Product Paramenters

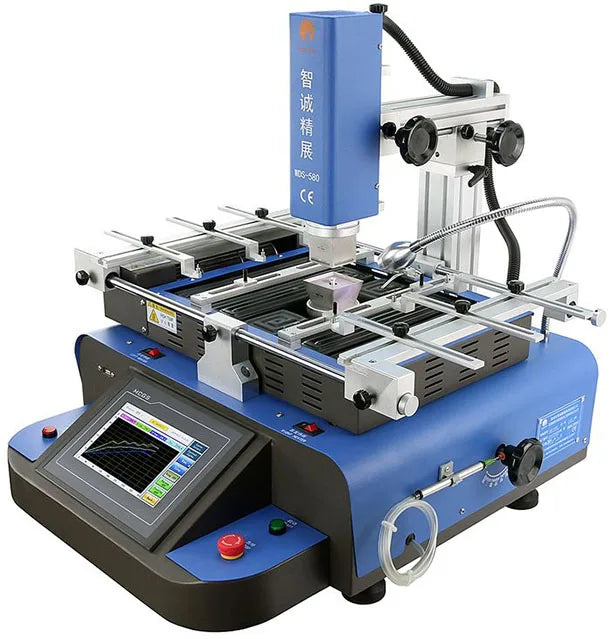

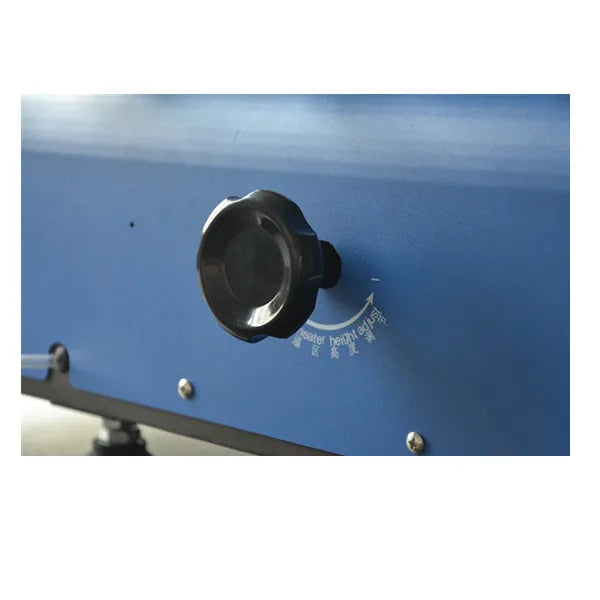

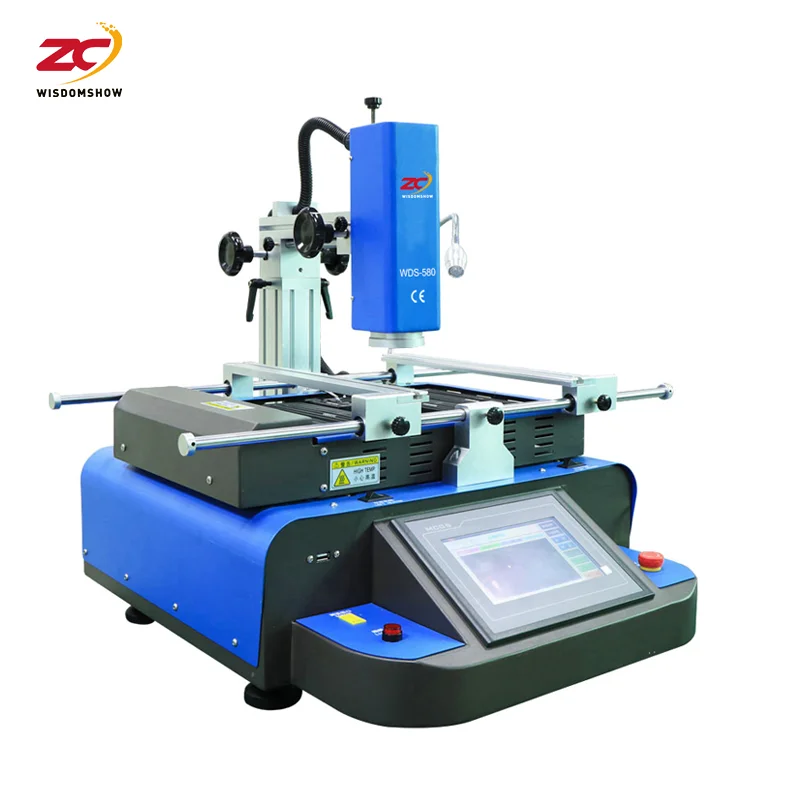

Detailed Images

Packing&Shipping

1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.

Company Information

Shenzhen Wisdomshow Technology Co., Ltd. was founded in 2011 by a team of experienced engineers and sales experts. Specializing in BGA rework stations and X-RAY inspection equipment, the company has grown rapidly through continuous R&D and technological innovation. In 2015, it expanded into the X-RAY field, launching several advanced inspection systems.Our factory bases on Shenzhen Baoan, has about ten thousand square meters.

With ISO9001 and CE certifications, multiple patents, and strong customization capabilities, Wisdomshow serves clients across Asia, Europe, and North America. Its solutions are widely used in server motherboard repair, LED assembly, and smartphone production. Guided by the principles of professionalism, innovation, and integrity, the company continues to earn global trust and
recognition.

Our Advantages and Service

Contact:24 hours technical support by email or calling;
Warranty:one year free,but all the other relative cost should be on the buyer's account;
Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
Service:Friendly English User manual provided; Good and professional after-sales service;
Price:Give great discount to AGENCY to ensure agents profit.
